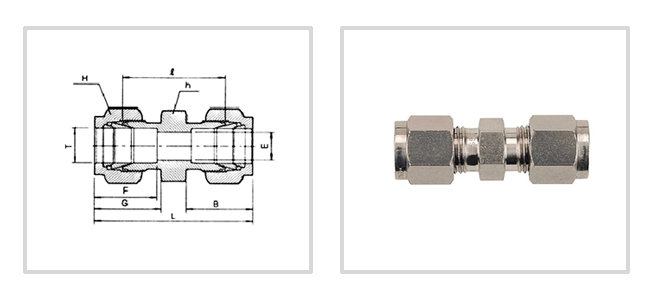

| Part No. | Tube
O.D. T mm |
E mm |
h mm | H mm | F | G | l | L |
|---|---|---|---|---|---|---|---|---|
| MPU - M 02 | 2 | 1.7 | 12 | 12 | 12.9 | 15.3 | 22.4 | 35.6 |
| MPU - M 03 | 3 | 2.4 | 12 | 12 | 12.9 | 15.3 | 22.1 | 35.3 |
| MPU - M 04 | 4 | 2.4 | 12 | 12 | 13.7 | 16.1 | 24.1 | 37.3 |
| MPU - M 06 | 6 | 4.8 | 14 | 14 | 15.3 | 17.7 | 26.2 | 41.0 |
| MPU - M 08 | 8 | 6.4 | 15 | 16 | 16.2 | 18.6 | 28.2 | 43.2 |
| MPU - M 10 | 10 | 7.9 | 18 | 19 | 17.2 | 19.5 | 31.0 | 46.2 |
| MPU - M 12 | 12 | 9.5 | 22 | 22 | 22.8 | 22.0 | 31.0 | 51.2 |
| MPU - M 15 | 15 | 11.9 | 24 | 25 | 24.4 | 22.0 | 31.8 | 52.0 |
| MPU - M 20 | 20 | 15.9 | 30 | 32 | 26.0 | 22.0 | 34.8 | 55.0 |
| MPU - M 22 | 22 | 18.3 | 30 | 32 | 26.0 | 22.0 | 34.8 | 55.0 |
| MPU - M 25 | 25 | 21.8 | 35 | 38 | 31.3 | 26.5 | 40.4 | 65.0 |
| Part No. |
Tube O.D. T in |
E Min |
h in | H in | F | G | l | L |
|---|---|---|---|---|---|---|---|---|
| IPU-01 | 1/16 | 1.27 | 5 | 5/16 | 8.63 | 10.91 | 17.50 | 25.15 |
| IPU-02 | 1/8 | 2.28 | 7/16 | 7/16 | 12.70 | 15.24 | 22.35 | 35.56 |
| IPU-03 | 3/16 | 3.04 | 7/16 | 1/2 | 13.71 | 16.00 | 24.13 | 37.33 |
| IPU-04 | 1/4 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 26.16 | 40.89 |
| IPU-05 | 5/16 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 28.19 | 42.92 |
| IPU-06 | 3/8 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 30.22 | 44.95 |
| IPU-08 | 1/2 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 30.98 | 51.30 |
| IPU-10 | 5/8 | 12.70 | 15/16 | 1 | 24.38 | 21.84 | 31.75 | 52.07 |
| IPU-12 | 3/4 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 33.27 | 53.59 |
| IPU-14 | 7/8 | 18.28 | 1-3/16 | 1-1/4 | 25.90 | 21.84 | 35.05 | 55.37 |
| 1 | 22.35 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 40.38 | 64.77 |
