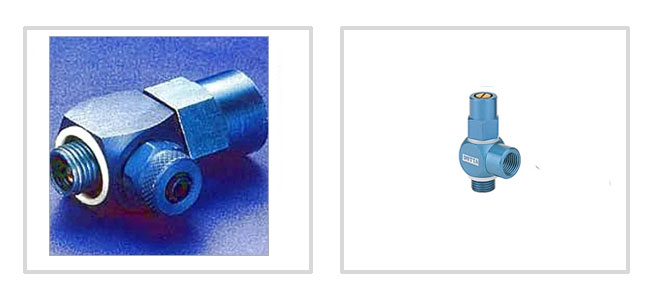

SWIVEL FLOW CONTROL VALVE

We are a prominent enterprise, which is engaged in offering Swivel Flow Control Valve to the respectable clients. The offered range of flow control valve is sourced from trusted vendors, who ensure to make it using rubber and steel wire. Along with this, the offered range of fuel dispensing hoses is applicable in petroleum-based fuel dispensing.

APPLICATION

These valves are used to control air flow, e.g. for the piston speed of single-acting and double-acting cylinders. The throttle screw controls the air flow in the direction of the arrow. In the opposite direction, the air flows via the non-return valve with full cross-sectional flow

ADVANTAGES

These space-saving valves are mounted directly into the cylinder port, without accessories. They can be turned through 360o . To achieve inlet port flow control with single-acting cylinders, the valve is fitted the other way round.

WORKING PRESSURE

0.1 TO 10 BAR

WORKING TEMPERATURE

-10 to 60o C

AVAILABILITY OF SIZES

• SFCV1/8-04 : 1/8 BSP MALE X 4MM TUBE
• SFCV1/8-06 : 1/8 BSP MALE X 6MM TUBE
• SFCV1/8-08 : 1/8 BSP MALE X 8MM TUBE
• SFCV1/4-06 : 1/4 BSP MALE X 6MM TUBE
• SFCV1/4-08 : 1/4 BSP MALE X 8MM TUBE
• SFCV1/8-1/8 : 1/8 BSP MALE X 1/8 BSP FEMALE
• SFCV1/4-1/4 : 1/4 BSP MALE X 1/4 BSP FEMALE
• SFCV3/8-3/8 : 3/8 BSP MALE X 3/8 BSP FEMALE
• SFCV1/2-1/2 : 1/2 BSP MALE X 3/8 BSP FEMALE
