NEEDLE VALVE

ADVANTAGES

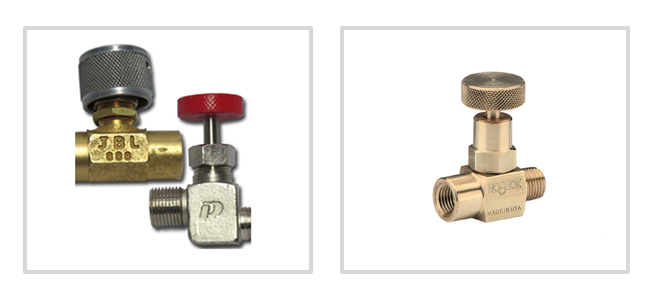

Pioneer Needle valves have metal to metal seats with fine threaded screwdown. This enables positive sealing up to the capacity of the valve. Pioneer Needle valves are made from forged brass body with SS304 spindle and teflon washer which gives extended service life. All valves are chrome plated.

WORKING PRESSURE RANGES

Valves are designed to withstand up to 150 PSI working pressure, unless otherwise noted.

NEEDLE VALVES INSTALLATION INSTRUCTIONS

All Needle valves should always be installed with the pressure against the seat. Or the arrow shown on body.

AVAILABILITY OF SIZES

Available in 1/4 BSP, 3/8 BSP, 1/2 BSP sizes and in form of Male to Male, Female to Female, Male to Tube, Female to Tube.
