Backed by sound technological expertise, we are presenting Male Adapter from our gamut of S.S. Tube Fittings, Stainless Tube Fittings, and Stainless Steel Pipe Fittings. We adopt rigid quality controls in accordance with the international standards and manufacture these by using the latest technologies and finest-grade raw materials.

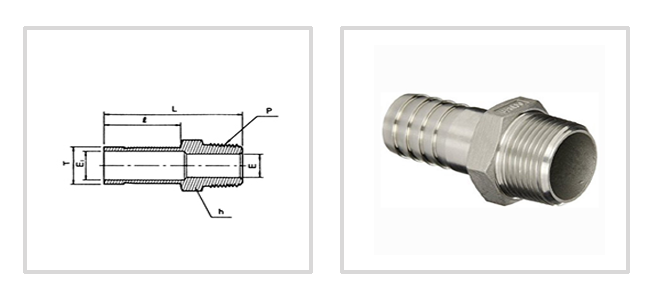

| Part No. | Tube O.D. T mm |
P (NPT) |
E | E1 | h mm | l | L |
|---|---|---|---|---|---|---|---|
| MPMA-03-02 | 3 | 1/8 | 4.0 | 1.8 | 12 | 13.15 | 29.4 |
| MPMA-06-02 | 6 | 1/8 | 4.6 | 4.6 | 12 | 15.75 | 32.8 |
| MPMA-06-04 | 6 | 1/4 | 4.6 | 4.6 | 14 | 15.75 | 38.1 |
| MPMA-08-04 | 8 | 1/4 | 6.3 | 6.3 | 14 | 16.50 | 39.1 |
| MPMA-10-04 | 10 | 1/4 | 7.7 | 7.7 | 14 | 17.50 | 39.9 |
| MPMA-10-06 | 10 | 3/8 | 7.7 | 7.7 | 17 | 17.50 | 40.6 |
| MPMA-10-08 | 10 | 1/2 | 11.9 | 7.7 | 22 | 17.50 | 45.2 |
| MPMA-12-04 | 12 | 1/4 | 7.1 | 9.1 | 14 | 23.50 | 46.5 |
| MPMA-12-06 | 12 | 3/8 | 9.1 | 9.1 | 17 | 23.50 | 46.2 |
| MPMA-12-08 | 12 | 1/2 | 11.9 | 9.1 | 22 | 23.50 | 51.8 |
| MPMA-18-08 | 18 | 1/2 | 11.9 | 13.9 | 22 | 24.90 | 53.2 |
| MPMA-18-12 | 18 | 3/4 | 15.9 | 13.9 | 27 | 24.90 | 53.2 |
| Part No | Tube O.D. T in |
P (NPT) |
E | E1 | h in | l | L |
|---|---|---|---|---|---|---|---|
| IPMA-02-02 | 1/8 | 1/8 | 4.57 | 1.77 | 7/16 | 13.45 | 29.50 |
| IPMA-02-04 | 1/8 | 1/4 | 7.11 | 1.77 | 9/16 | 13.45 | 34.80 |
| IPMA-03-02 | 3/16 | 1/8 | 4.57 | 3.04 | 7/16 | 14.20 | 30.22 |
| IPMA-03-04 | 3/16 | 1/4 | 7.11 | 3.04 | 9/16 | 14.20 | 35.56 |
| IPMA-04-02 | 1/4 | 1/8 | 4.57 | 4.57 | 7/16 | 15.75 | 31.80 |
| IPMA-04-04 | 1/4 | 1/4 | 7.11 | 4.57 | 9/16 | 15.75 | 37.08 |
| IPMA-04-06 | 1/4 | 3/8 | 10.41 | 4.57 | 11/16 | 15.75 | 37.84 |
| IPMA-04-08 | 1/4 | 1/2 | 12.70 | 4.57 | 7/8 | 16.80 | 43.43 |
| IPMA-05-02 | 5/16 | 1/8 | 4.57 | 6.35 | 7/16 | 16.80 | 32.76 |
| IPMA-05-04 | 5/16 | 1/4 | 7.11 | 6.35 | 9/16 | 17.50 | 38.10 |
| IPMA-06-02 | 3/8 | 1/8 | 4.57 | 7.11 | 7/16 | 17.50 | 33.50 |
| IPMA-06-04 | 3/8 | 1/4 | 7.11 | 7.11 | 9/16 | 17.50 | 38.90 |
| IPMA-06-06 | 3/8 | 3/8 | 10.41 | 7.11 | 11/16 | 17.50 | 39.60 |
| IPMA-06-08 | 3/8 | 1/2 | 12.70 | 7.11 | 7/8 | 23.20 | 45.20 |
| IPMA-08-04 | 1/2 | 1/4 | 7.11 | 9.90 | 9/16 | 23.20 | 44.50 |
| IPMA-08-06 | 1/2 | 3/8 | 10.41 | 9.90 | 11/16 | 23.20 | 45.20 |
| IPMA-08-08 | 1/2 | 1/2 | 12.70 | 9.90 | 7/8 | 24.70 | 50.50 |
| IPMA-10-06 | 5/8 | 3/8 | 10.41 | 12.70 | 11/16 | 24.70 | 47.40 |
| IPMA-10-08 | 5/8 | 1/2 | 12.7 | 12.70 | 7/8 | 24.70 | 52.30 |
| IPMA-10-12 | 5/8 | 3/4 | 18.28 | 12.70 | 1-1/16 | 24.70 | 52.30 |
| IPMA-12-08 | 3/4 | 1/2 | 12.70 | 14.98 | 7/8 | 24.70 | 52.30 |
| IPMA-12-12 | 3/4 | 3/4 | 18.28 | 14.98 | 1-1/16 | 24.70 | 52.30 |
| IPMA-12-16 | 3/4 | 1 | 22.35 | 14.98 | 1-3/8 | 24.70 | 57.91 |
| IPMA-14-12 | 7/8 | 3/4 | 18.28 | 17.27 | 1-1/16 | 26.70 | 54.30 |
| IPMA-16-12 | 1 | 3/4 | 18.28 | 20.06 | 1-1/16 | 31.70 | 58.70 |
| IPMA-16-16 | 1 | 1 | 22.35 | 20.06 | 1-3/8 | 31.70 | 66.00 |
