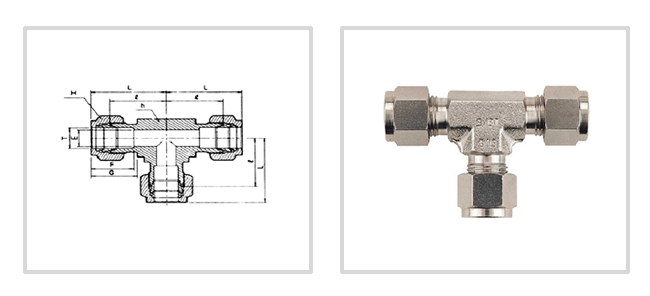

We are backed by a sound technological expertise and vast experience and are offering Union Tee from our huge gamut of Brass Pipe Fittings.
| Part No. | Tube
O.D. T mm |
>E mm |
h mm | H mm | >F | >G | >l | >L |
|---|---|---|---|---|---|---|---|---|
| MPUT-02 | 2 | 1.7 | 9.5 | 12 | 12.9 | 15.3 | 15.7 | 22.3 |
| MPUT-03 | 3 | 2.4 | 9.5 | 12 | 12.9 | 15.3 | 15.7 | 22.3 |
| MPUT-04 | 4 | 2.4 | 12.7 | 12 | 13.7 | 16.1 | 18.8 | 25.4 |
| MPUT-06 | 6 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27.0 |
| MPUT-08 | 8 | 6.4 | 14.3 | 16 | 16.2 | 18.6 | 21.3 | 28.8 |
| MPUT-10 | 10 | 7.9 | 17.5 | 19 | 17.2 | 19.5 | 23.9 | 31.5 |
| MPUT-12 | 12 | 9.5 | 20.6 | 22 | 22.8 | 22.0 | 25.9 | 36.0 |
| MPUT-15 | 15 | 11.9 | 25.4 | 25 | 24.4 | 22.0 | 28.7 | 38.8 |
| MPUT-16 | 16 | 12.7 | 25.4 | 25 | 24.4 | 22.0 | 28.7 | 38.8 |
| MPUT-18 | 18 | 15.1 | 27.0 | 30 | 24.4 | 22.0 | 29.7 | 39.8 |
| MPUT-20 | 20 | 15.9 | 31.8 | 32 | 26.0 | 22.0 | 32.5 | 42.6 |
| MPUT-22 | 22 | 18.3 | 31.8 | 32 | 26.0 | 22.0 | 32.5 | 42.6 |
| MPUT-25 | 25 | 21.8 | 36.0 | 38 | 31.3 | 26.5 | 36.8 | 49.1 |
| Part No. | Tube O.D. T in |
E Min |
h in | H in | F | G | l | L |
|---|---|---|---|---|---|---|---|---|
| IPUT-01 | 1/16 | 1.27 | 3/8 | 5/16 | 8.63 | 10.92 | 14.00 | 17.88 |
| IPUT-02 | 1/8 | 2.28 | 3/8 | 7/16 | 12.70 | 15.24 | 15.74 | 22.35 |
| IPUT-03 | 3/16 | 3.04 | 1/2 | 1/2 | 13.71 | 16.00 | 17.78 | 24.38 |
| IPUT-04 | 1/4 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.55 | 26.92 |
| IPUT-05 | 5/16 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 21.33 | 28.70 |
| IPUT-06 | 3/8 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 23.11 | 30.48 |
| IPUT-08 | 1/2 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 |
| IPUT-10 | 5/8 | 12.70 | 15/16 | 1 | 24.38 | 21.84 | 28.70 | 38.80 |
| IPUT-12 | 3/4 | 15.74 | 1-1/6 | 1-1/8 | 24.38 | 21.84 | 29.71 | 39.87 |
| IPUT-14 | 7/8 | 18.28 | 1-1/4 | 1-1/4 | 25.90 | 21.84 | 34.54 | 44.70 |
| IPUT-16 | 1 | 22.35 | 1-27/64 | 1-1/2 | 31.24 | 26.41 | 36.83 | 49.02 |
