2 Valve Manifolds

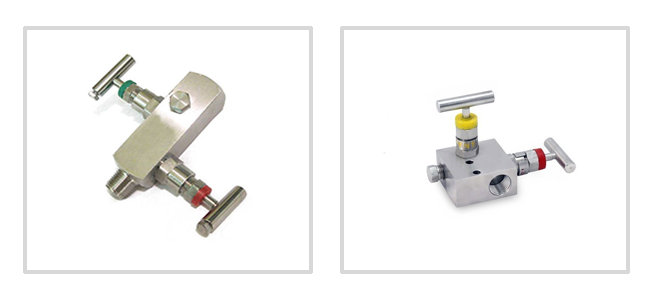

Pioneer 2 valve manifolds pipe to pipe (R), Pipe to Flange (T) valves are designed for connecting system impulse line & transmitters. These manifold consist of two valve configuration which allows for easy isolation, calibration, block and bleed for gauges, pressure switches and static pressure transmitting instruments. These manifolds are rugged in construction to withstand high pressures and temperatures. The manifolds are rated for pressures as high as 6000 PSI at 200oF or 4000 PSI at 500oF. with PTFE Packing. For a Higher Temperatures Grafoil Packing is used. These valve manifolds combine the functions of a tee, calibration valve, isolation valve and all tubing and fittings into a single compact unit thus reducing number of fittings and space required for installation.

Features:

• Withstand high pressures and temperatures


• Rated for pressures as high as 6000 PSI at 2000F or 4000 PSI at 5000F with PTFE packing


• For a Higher Temperatures Grafoil Packing is used


• Combine the functions of a tee, calibration valve, isolation valve and all tubing and fittings into a single compact unit


• Reduces the number of fittings and space required for installation

Data Sheet :

Type	Model No
Pipe to Pipe	2 VM - 8 - SS - R
Pipe to Flange	2 VM - 8 - SS - T
Flange to Flange	2 VM - 8 - SS - H
Pipe to Pipe Remote Mount	2 VM - 8 - SS - RM
