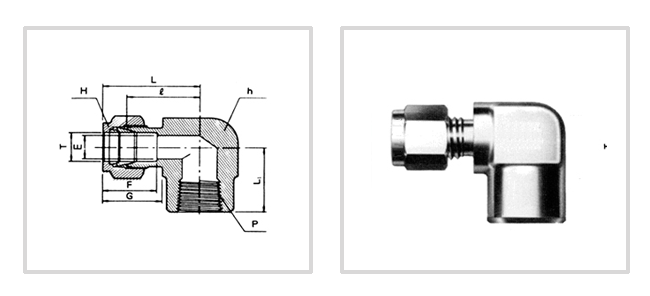

| Part No. | Tube
O.D. T mm |
P (NPT) |
E mm |
h mm | H mm | F | G | l | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|
| MPFE-06-04 | 6 | 1/4 | 4.8 | 17.46 | 14 | 15.3 | 17.7 | 22.4 | 28.9 | 22.40 |
| MPFE-06-06 | 6 | 3/8 | 4.8 | 20.63 | 14 | 15.3 | 17.7 | 24.4 | 31.7 | 22.40 |
| MPFE-06-08 | 6 | 1/2 | 4.8 | 25.40 | 14 | 15.3 | 17.7 | 27.2 | 34.6 | 28.40 |
| MPFE-08-04 | 8 | 1/4 | 6.4 | 17.46 | 16 | 16.2 | 18.6 | 23.1 | 30.6 | 22.40 |
| MPFE-08-08 | 8 | 1/2 | 6.4 | 20.63 | 16 | 16.2 | 18.6 | 28.0 | 35.2 | 28.40 |
| MPFE-10-04 | 10 | 1/4 | 7.9 | 17.46 | 19 | 17.2 | 19.5 | 25.9 | 33.5 | 22.35 |
| MPFE-10-06 | 10 | 3/8 | 7.9 | 20.63 | 19 | 17.2 | 19.5 | 25.9 | 33.5 | 22.40 |
| MPFE-10-08 | 10 | 1/2 | 7.9 | 25.40 | 19 | 17.2 | 19.5 | 28.7 | 36.1 | 28.40 |
| MPFE-12-06 | 12 | 3/8 | 9.5 | 20.63 | 22 | 22.8 | 22.0 | 25.9 | 36.2 | 22.35 |
| MPFE-12-08 | 12 | 1/2 | 9.5 | 25.40 | 22 | 22.8 | 22.0 | 28.7 | 38.8 | 28.40 |
| Part No. |
Tube O.D. T in |
P (NPT) |
E Min |
h in | H in | F | G | l | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|
| IPFE-02-02 | 1/8 | 1/8 | 2.28 | 1/2 | 7/16 | 12.70 | 15.24 | 18.03 | 24.63 | 19.05 |
| IPFE-02-04 | 1/8 | 1/4 | 2.28 | 11/16 | 7/16 | 12.70 | 15.24 | 20.62 | 27.82 | 22.35 |
| IPFE-03-02 | 3/16 | 1/8 | 3.04 | 1/2 | 1/2 | 13.71 | 16.00 | 18.79 | 25.40 | 19.05 |
| IPFE-04-02 | 1/4 | 1/8 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.55 | 26.92 | 19.05 |
| IPFE-04-04 | 1/4 | 1/4 | 4.82 | 11/16 | 9/16 | 15.24 | 17.78 | 22.35 | 29.71 | 22.35 |
| IPFE-04-06 | 1/4 | 3/8 | 4.82 | 13/16 | 9/16 | 15.24 | 17.78 | 24.38 | 31.75 | 22.35 |
| IPFE-04-08 | 1/4 | 1/2 | 4.82 | 1 | 9/16 | 15.24 | 17.78 | 27.17 | 34.54 | 28.44 |
| IPFE-05-02 | 5/16 | 1/8 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 21.33 | 28.70 | 19.05 |
| IPFE-05-04 | 5/16 | 1/4 | 6.35 | 11/16 | 5/8 | 16.25 | 18.54 | 23.11 | 30.48 | 22.35 |
| IPFE-06-02 | 3/8 | 1/8 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 23.11 | 30.48 | 19.05 |
| IPFE-06-04 | 3/8 | 1/4 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 23.87 | 31.24 | 22.35 |
| IPFE-06-06 | 3/8 | 3/8 | 7.11 | 13/16 | 11/16 | 16.76 | 19.30 | 25.90 | 33.27 | 22.35 |
| IPFE-06-08 | 3/8 | 1/2 | 7.11 | 1 | 11/16 | 16.76 | 19.30 | 28.70 | 36.06 | 28.44 |
| IPFE-08-04 | 1/2 | 1/4 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 | 22.35 |
| IPFE-08-06 | 1/2 | 3/8 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.08 | 22.35 |
| IPFE-08-08 | 1/2 | 1/2 | 10.41 | 1 | 7/8 | 22.86 | 21.84 | 28.70 | 38.86 | 28.44 |
| IPFE-10-06 | 5/8 | 3/8 | 12.70 | 15/16 | 1 | 24.38 | 21.84 | 27.94 | 38.10 | 20.35 |
| IPFE-10-08 | 5/8 | 1/2 | 12.70 | 1 | 1 | 24.38 | 21.84 | 29.71 | 39.87 | 28.44 |
| IPFE-12-08 | 3/4 | 1/2 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 29.71 | 39.87 | 28.44 |
| IPFE-12-12 | 3/4 | 3/4 | 15.74 | 1-1/4 | 1-1/8 | 24.38 | 21.84 | 34.54 | 44.70 | 31.75 |
| IPFE-14-12 | 7/8 | 3/4 | 18.28 | 1-1/4 | 1-1/4 | 25.90 | 21.84 | 34.54 | 44.70 | 31.75 |
| IPFE-16-12 | 1 | 3/4 | 22.35 | 1-27/64 | 1-1/2 | 31.24 | 26.41 | 36.83 | 49.02 | 31.75 |
| IPFE-16-16 | 1 | 1 | 22.35 | 1-11/16 | 1-1/2 | 31.24 | 26.41 | 38.10 | 50.29 | 38.10 |
