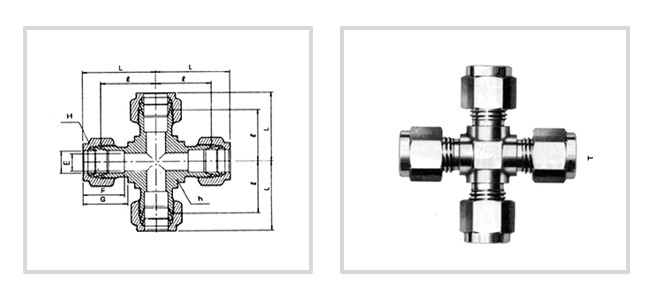

We are presenting Union Cross from our wide array of Brass Pipe Fittings. These are made from the highest-grade raw materials and are designed to offer flawless operations under extreme pressure and temperature conditions. We use modern technologies to manufacture these by strictly adhering to the laid down quality standards of the industry. We also offer Union Tee, Male Run Tee, and Union Coupling at competitive prices to our valued customers.
Part No. | Tube
O.D. T mm |
E mm |
h mm | H mm | F | G | l | L |
---|---|---|---|---|---|---|---|---|
MPUC-03 | 3 | 2.4 | 9.5 | 12 | 12.9 | 15.3 | 15.7 | 22.3 |
MPUC-06 | 6 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27.0 |
MPUC-08 | 8 | 6.4 | 14.3 | 16 | 16.2 | 18.6 | 21.3 | 28.8 |
MPUC-10 | 10 | 7.9 | 17.5 | 19 | 17.2 | 19.5 | 23.9 | 31.5 |
MPUC-12 | 12 | 9.5 | 20.6 | 22 | 22.8 | 22.0 | 25.9 | 36.0 |
MPUC-16 | 16 | 12.7 | 25.4 | 25 | 24.4 | 22.0 | 28.7 | 38.8 |
MPUC-18 | 18 | 15.1 | 27.0 | 30 | 24.4 | 22.0 | 29.7 | 39.8 |
MPUC-20 | 20 | 15.9 | 31.8 | 32 | 26.0 | 22.0 | 32.5 | 42.6 |
MPUC-25 | 25 | 21.8 | 36.0 | 38 | 31.3 | 22.0 | 36.8 | 49.1 |
Part No. |
Tube O.D. T in |
E Min |
h in | H in | F | G | l | L |
---|---|---|---|---|---|---|---|---|
IPUC-01 | 1/16 | 1.27 | 3/8 | 5/16 | 8.63 | 10.91 | 14.00 | 25.15 |
IPUC-02 | 1/8 | 2.28 | 3/8 | 7/16 | 12.70 | 15.24 | 15.74 | 35.56 |
IPUC-03 | 3/16 | 3.04 | 1/2 | 1/2 | 13.71 | 16.00 | 17.78 | 37.33 |
IPUC-04 | 1/4 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.55 | 40.89 |
IPUC-05 | 5/16 | 6.35 | 1/2 | 5/8 | 16.25 | 18.54 | 21.33 | 42.92 |
IPUC-06 | 3/8 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 23.11 | 44.95 |
IPUC-08 | 1/2 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 51.30 |
IPUC-10 | 5/8 | 12.70 | 13/16 | 1 | 24.38 | 21.84 | 28.70 | 52.07 |
IPUC-12 | 3/4 | 15.74 | 1 | 1-1/8 | 24.38 | 21.84 | 29.71 | 53.59 |
IPUC-14 | 7/8 | 18.28 | 1-1/4 | 1-1/4 | 25.90 | 21.84 | 34.54 | 55.37 |
IPUC-16 | 1 | 22.35 | 1-27/64 | 1-1/2 | 31.24 | 26.41 | 36.83 | 64.77 |
