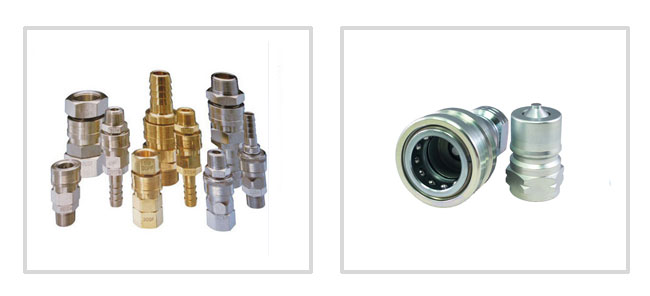

QUICK RELEASE COUPLINGS

We are involved in offering an extensive range of Quick Release Coupling, which is manufactured in line with the verified industry standards. These are widely appreciated by our global clients for sturdy construction, dimensional accuracy and corrosion resistant features. We provide customization facility to meet the specific demands of our clients.Pioneer Quick Release Couplings are specifically designed to fulfill need for simple, positive coupler which is completely reliable and adaptable to a wide range of applications.

Our organization offers a wide range of Automatic Quick Release Coupling, which is specifically designed to meet need for simple, positive coupler. These are completely reliable and adaptable to a wide range of applications. Quick Release Coupling works on simple push & pull principle, wherein when the plug is pushed into the socket automatically locks in, resulting in a positive and leak proof connection. This action simultaneously ensures to open the valve and the fluid flow starts. Further, these are also very easy to disconnect and the valve shuts off automatically

Features:

• Dimensional accuracy
• Reliability
• Resistance to corrosion

Operations

This works on simple push & pull principle. The plug when pushed into the socket automatically locks in, resulting in a positive and leak proof connection. This action simultaneously opens the valve and the fluid flow starts. To disconnect pull back the sleeve of the socket, the plug ejects out and the valve shuts off automatically.

Models

• QRC :- Single Check valve. Size : 1/8"BSP to 2"BSP
• QRC :- Through type.
• QRC :- Double Check Valve. Size : 1/8"BSP to 4"BSP
• SOCKET : -Male 'Male ' Female ' Hose ' Hose ' Female
• PLUG :- Hose ' Male ' Female ' Male ' Female ' Hose

Material of Constructions :

• BODY - Carbon Steel Chrome plated / Brass / Stainless Steel 304 & 316.
• SPRING - Spring Steel / SS 304 / SS 316.
• BALL - Steel / SS 304 / SS 316
• SEAL - Standard Nitrile, Neoprine, Silicon and Viton on request.

PRESSURE :

• SINGLE CHECK VALVE :- 0 - 500 PSI..
• DOUBLE CHECK VALVE :- 0 - 4000 PSI.

TEMPERATURE :

• SINGLE CHECK VALVE AND :- 0 - 900C - Standard Nitrile or Neoprine.
• DOUBLE CHECK VALVE :- 0 - 2000C - Silicon or Viton.

APPLICATIONS :

• Air , Water, Steam, Gases, Use in Fertilizers, Chemicals, Petrochemicals, Textiles Machineries, Machine Tools, Refineries and Pneumatics.
