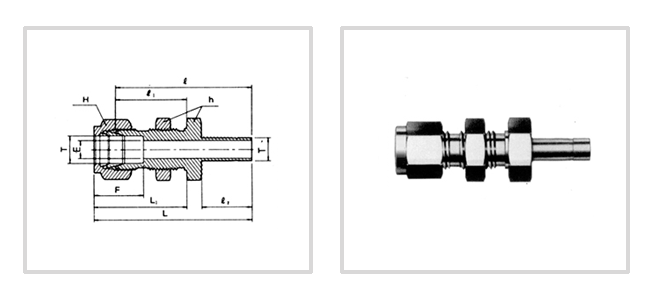

Our company is instrumental in offering best quality Bulkhead Reducer to our prestigious customers. Manufactured as per the industry set standards.
| Part No. | Tube O.D. Tin |
E Min |
h in | H in | F | l | l1 | l2 | L | L1 | Panel Hole DrillSize |
Max Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPBR-02-02 | 1/8 | 2.03 | 1/2 | 7/16 | 12.70 | 42.92 | 24.63 | 13.46 | 49.53 | 31.24 | 8.33 | 12.70 |
| MPBR-04-04 | 1/4 | 4.82 | 5/8 | 9/16 | 15.24 | 48.51 | 26.16 | 15.74 | 55.88 | 33.52 | 11.50 | 10.16 |
| MPBR-06-06 | 3/8 | 7.11 | 3/4 | 11/16 | 16.76 | 53.84 | 29.46 | 17.52 | 61.21 | 36.83 | 14.68 | 11.17 |
| MPBR-08-08 | 1/2 | 10.41 | 15/16 | 7/8 | 22.86 | 62.73 | 31.75 | 23.11 | 72.89 | 41.91 | 19.44 | 12.70 |
| Part No. | Tube O.D. Tin |
E Min |
h in | H in | F | l | l1 | l2 | L | L1 | Panel Hole DrillSize |
Max Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IPBR-02-02 | 1/8 | 2.03 | 1/2 | 7/16 | 12.70 | 42.92 | 24.63 | 13.46 | 49.53 | 31.24 | 8.33 | 12.70 |
| IPBR-04-04 | 1/4 | 4.82 | 5/8 | 9/16 | 15.24 | 48.51 | 26.16 | 15.74 | 55.88 | 33.52 | 11.50 | 10.16 |
| IPBR-06-06 | 3/8 | 7.11 | 3/4 | 11/16 | 16.76 | 53.84 | 29.46 | 17.52 | 61.21 | 36.83 | 14.68 | 11.17 |
| IPBR-08-08 | 1/2 | 10.41 | 15/16 | 7/8 | 22.86 | 62.73 | 31.75 | 23.11 | 72.89 | 41.91 | 19.44 | 12.70 |
