Due to the skilled and nimble crew of professionals, we are competent to offer an inclusive assortment of Female Connector. Keeping in mind present market demands, these connectors are developed and fabricated by skilled and trained professionals employing supreme-quality raw material and advanced tools.

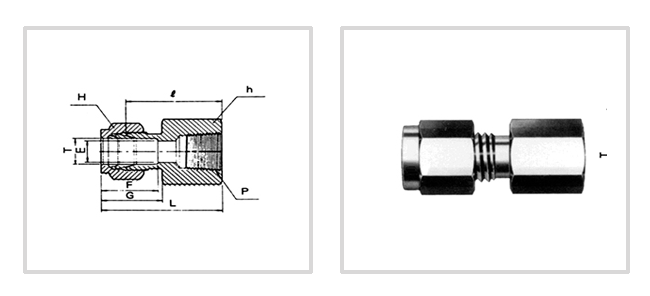

| Part No. | MTube
O.D. T mm |
P (NPT) |
E mm |
h mm | H mm | F | G | l | L |
|---|---|---|---|---|---|---|---|---|---|
| MPFC-03-02 | 3 | 1/8 | 2.4 | 14 | 12 | 12.9 | 15.3 | 22.1 | 28.7 |
| MPFC-03-04 | 3 | 1/4 | 2.4 | 19 | 12 | 12.9 | 15.3 | 26.9 | 33.5 |
| MPFC-04-02 | 4 | 1/8 | 2.4 | 14 | 12 | 13.7 | 16.1 | 23.1 | 29.7 |
| MPFC-06-02 | 6 | 1/8 | 4.8 | 14 | 14 | 15.3 | 17.7 | 23.9 | 31.3 |
| MPFC-06-04 | 6 | 1/4 | 4.8 | 19 | 14 | 15.3 | 17.7 | 28.4 | 35.8 |
| MPFC-06-06 | 6 | 3/8 | 4.8 | 22 | 14 | 15.3 | 17.7 | 29.5 | 36.9 |
| MPFC-06-08 | 6 | 1/2 | 4.8 | 27 | 14 | 15.3 | 17.7 | 35.1 | 42.5 |
| MPFC-08-02 | 8 | 1/8 | 6.4 | 15 | 16 | 16.2 | 18.6 | 24.6 | 32.1 |
| MPFC-08-04 | 8 | 1/4 | 6.4 | 19 | 16 | 16.2 | 18.6 | 29.5 | 37.0 |
| MPFC-08-06 | 8 | 3/8 | 6.4 | 22 | 16 | 16.2 | 18.6 | 30.2 | 37.7 |
| MPFC-08-08 | 8 | 1/2 | 6.4 | 27 | 16 | 16.2 | 19.5 | 35.8 | 43.3 |
| MPFC-10-02 | 10 | 1/8 | 7.9 | 18 | 19 | 17.2 | 19.5 | 25.4 | 33.0 |
| MPFC-10-04 | 10 | 1/4 | 7.9 | 19 | 19 | 17.2 | 19.5 | 30.2 | 37.8 |
| MPFC-10-06 | 10 | 3/8 | 7.9 | 22 | 19 | 17.2 | 19.5 | 31.0 | 38.6 |
| MPFC-10-08 | 10 | 1/2 | 7.9 | 27 | 19 | 17.2 | 22.0 | 36.6 | 44.2 |
| MPFC-12-02 | 12 | 1/8 | 8.3 | 22 | 22 | 22.8 | 22.0 | 28.4 | 38.5 |
| MPFC-12-04 | 12 | 1/4 | 9.5 | 22 | 22 | 22.8 | 22.0 | 30.2 | 40.3 |
| MPFC-12-06 | 12 | 3/8 | 9.5 | 22 | 22 | 22.8 | 22.0 | 31.0 | 41.1 |
| MPFC-12-08 | 12 | 1/2 | 9.5 | 27 | 22 | 22.8 | 22.0 | 36.6 | 46.7 |
| MPFC-12-12 | 12 | 3/4 | 9.5 | 35 | 22 | 22.8 | 22.0 | 38.9 | 49.0 |
| MPFC-15-08 | 15 | 1/2 | 11.9 | 27 | 25 | 24.4 | 22.0 | 36.6 | 46.7 |
| MPFC-16-08 | 16 | 1/2 | 12.7 | 27 | 25 | 24.4 | 22.0 | 36.8 | 46.9 |
| MPFC-20-08 | 20 | 1/2 | 15.9 | 30 | 32 | 26.0 | 22.0 | 37.8 | 47.9 |
| MPFC-20-12 | 20 | 3/4 | 15.9 | 35 | 32 | 26.0 | 22.0 | 39.6 | 49.7 |
| MPFC-22-12 | 22 | 3/4 | 18.3 | 35 | 32 | 26.0 | 22.0 | 39.6 | 49.7 |
| MPFC-22-16 | 22 | 1 | 18.3 | 41 | 32 | 26.0 | 22.0 | 47.8 | 57.9 |
| MPFC-25-12 | 25 | 3/4 | 21.8 | 35 | 38 | 31.3 | 26.5 | 41.1 | 53.4 |
| MPFC-25-16 | 25 | 1 | 21.8 | 41 | 38 | 31.3 | 26.5 | 50.0 | 62.3 |
| Part No. | Tube O.D. T in |
P (NPT) |
E Min |
h in | H in | F | G | l | L |
|---|---|---|---|---|---|---|---|---|---|
| IPFC-02-02 | 1/8 | 1/8 | 2.28 | 9/16 | 7/16 | 12.70 | 15.24 | 22.09 | 28.70 |
| IPFC-02-04 | 1/8 | 1/4 | 2.28 | 3/4 | 7/16 | 12.70 | 15.24 | 26.92 | 33.52 |
| IPFC-03-02 | 3/16 | 1/8 | 3.04 | 9/16 | 1/2 | 13.71 | 16.00 | 23.11 | 29.71 |
| IPFC-04-02 | 1/4 | 1/8 | 4.82 | 9/16 | 9/16 | 15.24 | 17.78 | 23.87 | 31.24 |
| IPFC-04-04 | 1/4 | 1/4 | 4.82 | 3/4 | 9/16 | 15.24 | 17.78 | 28.44 | 35.81 |
| IPFC-04-06 | 1/4 | 3/8 | 4.82 | 7/8 | 9/16 | 15.24 | 17.78 | 30.22 | 37.59 |
| IPFC-04-08 | 1/4 | 1/2 | 4.82 | 1-1/16 | 9/16 | 15.24 | 17.78 | 35.05 | 42.41 |
| IPFC-05-02 | 5/16 | 1/8 | 6.35 | 9/16 | 5/8 | 16.25 | 17.78 | 24.63 | 32.00 |
| IPFC-05-04 | 5/16 | 1/4 | 6.35 | 3/4 | 5/8 | 16.25 | 18.54 | 29.46 | 36.83 |
| IPFC-06-02 | 3/8 | 1/8 | 7.11 | 5/8 | 11/16 | 16.76 | 18.54 | 25.40 | 32.76 |
| IPFC-06-04 | 3/8 | 1/4 | 7.11 | 3/4 | 11/16 | 16.76 | 19.30 | 30.22 | 37.59 |
| IPFC-06-06 | 3/8 | 3/8 | 7.11 | 7/8 | 11/16 | 16.76 | 19.30 | 31.75 | 39.11 |
| IPFC-06-08 | 3/8 | 1/2 | 7.11 | 1-1/16 | 11/16 | 16.76 | 19.30 | 36.57 | 43.94 |
| IPFC-06-12 | 3/8 | 3/4 | 7.11 | 1-5/16 | 11/16 | 22.86 | 19.30 | 40.38 | 47.75 |
| IPFC-08-04 | 1/2 | 1/4 | 10.41 | 1-3/16 | 7/8 | 22.86 | 19.30 | 30.22 | 40.38 |
| IPFC-08-06 | 1/2 | 3/8 | 10.41 | 7/8 | 7/8 | 22.86 | 21.84 | 31.75 | 41.91 |
| IPFC-08-08 | 1/2 | 1/2 | 10.41 | 1-1/16 | 7/8 | 22.86 | 21.84 | 36.57 | 46.73 |
| IPFC-08-12 | 1/2 | 3/4 | 10.41 | 1-5/16 | 7/8 | 24.38 | 21.84 | 38.10 | 48.26 |
| IPFC-10-06 | 5/8 | 3/8 | 12.70 | 15/16 | 1 | 24.38 | 21.84 | 31.75 | 41.91 |
| IPFC-10-08 | 5/8 | 1/2 | 12.70 | 1-1/16 | 1 | 24.38 | 21.84 | 36.57 | 46.73 |
| IPFC-12-08 | 3/4 | 1/2 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 36.57 | 46.73 |
| IPFC-12-12 | 3/4 | 3/4 | 15.74 | 1-5/16 | 1-1/8 | 24.38 | 21.84 | 38.10 | 48.26 |
| IPFC-14-12 | 7/8 | 3/4 | 18.28 | 1-5/16 | 1-1/4 | 25.90 | 21.84 | 39.62 | 49.78 |
| IPFC-16-12 | 1 | 3/4 | 22.35 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 41.14 | 53.24 |
| IPFC-16-16 | 1 | 1 | 22.35 | 1-5/8 | 1-1/2 | 31.24 | 26.41 | 50.03 | 62.23 |
