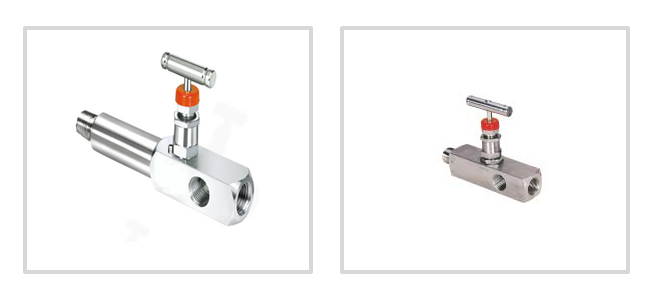

GUAGE ROOT VALVES

Gauge Root Valves are designed for connecting system impulse line & transmitters. These manifold consist of Single valve configuration which allows for easy isolation, calibration, block and bleed for gauges, pressure switches and static pressure transmitting instruments. These valves are rugged in construction to withstand high pressures and temperatures. The valves are rated for pressures as high as 6000 PSI at 200oF or 4000 PSI at 500oF. with PTFE Packing. For a Higher Temperatures Grafoil Packing is used. These valve combine the functions of a tee, calibration valve, isolation valve and all tubing and fittings into a single compact unit thus reducing number of fittings and space required for installation.

We offer an extensive range of Gauge Root Valves, which is designed for connecting system impulse line & transmitters. These valves consist single valve configuration that allows for easy isolation, calibration, block and bleeds for gauges, pressure switches and static pressure transmitting instruments. Our range is rugged in construction that helps to withstand high pressures and temperatures.

Feature :

• Rated for pressures as high as 6000 PSI at 2000F or 4000 PSI at 5000F, with PTFE packing


• For higher temperatures, grafoil packing is used


• Combine the functions of a tee, calibration valve, and isolation valve


• All tubing and fittings into a single compact unit


• Reduces the number of fittings and space required for installation

Data Sheet :

• Standard : PGRV-H-S-88-MF-137mm


• Extended : PGRV-H-S-88-MF-184mm
