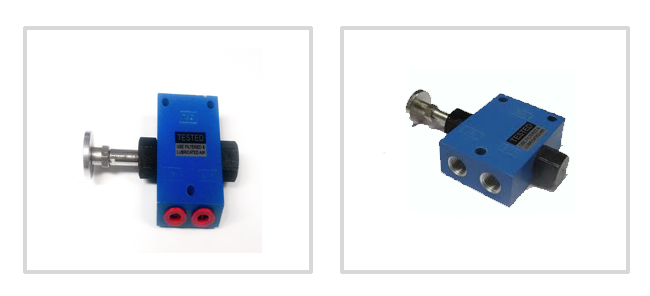

AIR INTERLOCK VALVE

AIR INTERLOCK VALVE

Aluminium Forged Body is high strong, hard, and rigid. (Optional: Brass Forged Body against order).

Nickel plated body for good surface finishing & better aesthetic look.

M.O.C: Stainless steel contact pad & spring, brass operating shaft, and aluminium end cap eliminates corrosion.

Thread Connection: 1/4” NPT Female pneumatic connection ports.

O-Ring is suitable for -40° C temperature.

Shaft wiper seal helps prevent contaminants from entering seal area.

Universal Reversible mounting fits all API adaptors and vapor fittings for different height requirements and application.

Rigid mounting extends valve life.

Adjustable contact pad for different couplings and application.

Can be installed as normally closed or normally open valve.

Operating Pressure: can be operated at a maximum working pressure of 150 PSI (10.34 bar)

Testing Pressure: this valve successfully tested at 225 PSI (15.51 bar) pressure.

Operating Temperature: can be able to operate without leaking in the temperature range of -40°F to 150°F

Cycle Test: this valve is successfully tested for 100,000 Cycles.

lighter than other valves.

Overall best field serviceability.

USEFUL IN:
