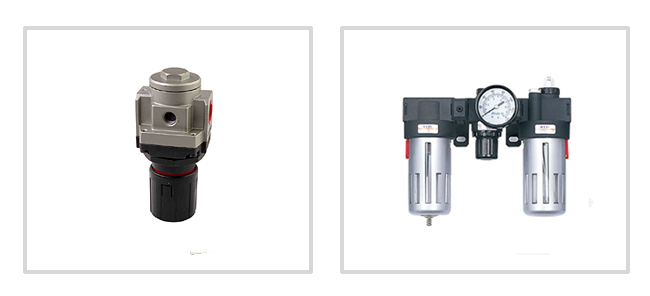

FILTER - REGULATOR - LUBRICATOR

FILTER - REGULATOR - LUBRICATOR


We bring forth our vast industrial experience and expertise in offering a fine quality range of Filters Regulator Lubricator. At reasonable rates clients can avail this Lubricator from us. We provide this Lubricator to our esteem patrons after complete testing. Lubricator is extensively used in industrial applications as per the requirements.


Filter Model MF:


Regulator Model MR NTEGRAL UNIT Model MI:

FILTER : Model MF LUBRICATOR : Model ML.
Maximum Pressure 17 Kg/cm2
Max.Temperature 48oC for polycarbonate bowl
85o for metal bowl
Port Sizes 1/4" , 3/8" and 1/2" BSP(F),
NPT and BSPT optional
Capacity (Bowl) 180oc.c. (Drain cock optional)
Manual Drain Automatic Drain also available.
REGULATOR : Model MR INTEGRAL UNIT : Model MI
Maximum Pressure 17 kg/cm2
Max.Temperature 48oC for polycarbonate bowl
85oC for metal bowl
Port Sizes 1/4", 3/8" and 1/2" BSP(F),
NPT and BSPT optional
Secondary 0.5-10 Kg/cm², 0.5-10 Kg/cm
Pressure Ranges 0.2-2 Kg/cm² 0.2-4Kg/cm²
Pressure Guage 55 mm dial, 1/4" NPT back connection std.
Monting Bracket Optional
Panel mounting Optional
- Model: AFRL Model: MFRL
- Model: AFRL Model: MFRL
Sizes Std: 1/2",3/4"
& 1" BSP (F)
NPT & BSPT optional.
Std: 1/4",3/8"
& 1/2" BSP (F)
NPT & BSPT optional.
Bowl Capacity 340cc 180cc
- -
Maximum Pressure 17 kg/cm²
Maximum Temperature 48oC for polycarbonate bowl
85oC for metal bowl
Secondary    0.5-10 Kg/cm² Std.
Pressure Ranges 0.2-4 Kg/cm², 0.1-2Kg/cm²
Pressure Guage 55 mm deal, 1/4" NPT back connection (std)
Filter Element Sinthered bronze 25 micron Std.
5 and 50 micron optional.
