We have gained immense knowledge and experience of the domain and are offering Male Elbow from our gamut of S.S. Tube Fittings, Stainless Tube Fittings, and Stainless Steel Pipe Fittings. These are made from premium-grade raw materials under stringent quality controls by using state-of-the-art technologies.

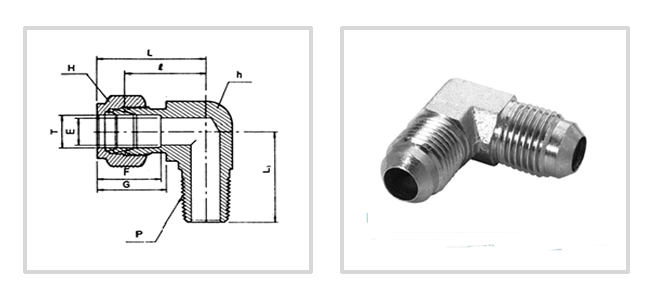

| Part No. | Tube O.D. T mm |
P (NPT) |
E mm |
h mm | H mm | F | G | l | L | L 1 |
|---|---|---|---|---|---|---|---|---|---|---|
| MPME-03-02 | 3 | 1/8 | 2.4 | 12.7 | 12 | 12.9 | 15.3 | 17.0 | 23.6 | 17.8 |
| MPME-03-04 | 3 | 1/4 | 2.4 | 12.7 | 12 | 12.9 | 15.3 | 18.0 | 24.6 | 23.4 |
| MPME-04-02 | 4 | 1/8 | 2.4 | 12.7 | 12 | 13.7 | 16.1 | 18.8 | 25.4 | 18.8 |
| MPME-04-04 | 4 | 1/4 | 2.4 | 12.7 | 12 | 13.7 | 16.1 | 18.8 | 25.4 | 23.4 |
| MPME-06-02 | 6 | 1/8 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27.0 | 18.8 |
| MPME-06-04 | 6 | 1/4 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27.0 | 23.4 |
| MPME-06-06 | 6 | 3/8 | 4.8 | 17.5 | 14 | 15.3 | 17.7 | 22.4 | 29.8 | 26.2 |
| MPME-06-08 | 6 | 1/2 | 4.8 | 20.6 | 14 | 15.3 | 17.7 | 24.4 | 31.8 | 33.0 |
| MPME-08-02 | 8 | 1/8 | 4.8 | 14.3 | 16 | 16.2 | 18.6 | 21.3 | 28.8 | 19.8 |
| MPME-08-04 | 8 | 1/4 | 6.4 | 14.3 | 16 | 16.2 | 18.6 | 21.3 | 28.8 | 24.4 |
| MPME-08-06 | 8 | 3/8 | 6.4 | 17.5 | 16 | 16.2 | 18.6 | 23.9 | 31.4 | 28.5 |
| MPME-08-08 | 8 | 1/2 | 6.4 | 20.6 | 16 | 16.2 | 18.6 | 25.1 | 32.6 | 33.0 |
| MPME-10-02 | 10 | 1/8 | 4.8 | 17.5 | 19 | 17.2 | 19.5 | 23.9 | 31.5 | 23.6 |
| MPME-10-04 | 10 | 1/4 | 7.1 | 17.5 | 19 | 17.2 | 19.5 | 23.9 | 31.5 | 28.2 |
| MPME-10-06 | 10 | 3/8 | 7.9 | 17.5 | 19 | 17.2 | 19.5 | 25.9 | 31.5 | 28.2 |
| MPME-10-08 | 10 | 1/2 | 7.9 | 20.6 | 19 | 17.2 | 19.5 | 25.9 | 33.5 | 33.0 |
| MPME-12-02 | 12 | 1/8 | 4.8 | 20.6 | 22 | 22.8 | 22.00 | 25.9 | 36.0 | 23.6 |
| MPME-12-04 | 12 | 1/4 | 7.1 | 20.6 | 22 | 22.8 | 22.00 | 25.9 | 36.0 | 28.2 |
| MPME-12-06 | 12 | 3/8 | 9.5 | 20.6 | 22 | 22.8 | 22.00 | 25.9 | 36.0 | 28.2 |
| MPME-12-08 | 12 | 1/2 | 9.5 | 20.6 | 22 | 22.8 | 22.00 | 29.7 | 36.0 | 33.0 |
| MPME-12-12 | 12 | 3/4 | 9.5 | 27.0 | 22 | 22.8 | 22.00 | 27.9 | 39.8 | 36.8 |
| MPME-16-06 | 16 | 3/8 | 9.5 | 25.4 | 25 | 24.4 | 22.00 | 27.9 | 38.0 | 30.2 |
| MPME-16-08 | 16 | 1/2 | 11.9 | 25.4 | 25 | 24.4 | 22.00 | 29.7 | 38.0 | 35.1 |
| MPME-16-12 | 16 | 3/4 | 12.7 | 27.0 | 25 | 24.4 | 22.00 | 29.7 | 39.8 | 36.8 |
| MPME-18-08 | 18 | 1/2 | 11.9 | 27.0 | 30 | 24.4 | 22.00 | 29.7 | 39.8 | 36.8 |
| MPME-18-12 | 18 | 3/4 | 15.1 | 27.0 | 30 | 24.4 | 22.00 | 29.7 | 39.8 | 36.8 |
| MPME-20-08 | 20 | 1/2 | 11.9 | 31.8 | 32 | 26.0 | 22.00 | 34.5 | 44.6 | 41.7 |
| MPME-20-12 | 20 | 3/4 | 15.9 | 31.8 | 32 | 26.0 | 22.00 | 34.5 | 44.6 | 41.7 |
| MPME-22-12 | 22 | 3/4 | 15.9 | 31.8 | 32 | 26.0 | 22.00 | 34.5 | 44.6 | 41.7 |
| MPME-22-16 | 22 | 1 | 18.3 | 36.0 | 32 | 26.0 | 22.00 | 34.5 | 44.6 | 46.5 |
| MPME-25-12 | 25 | 3/4 | 15.9 | 36.0 | 38 | 31.3 | 26.5 | 36.8 | 49.1 | 41.7 |
| MPME-25-16 | 25 | 1 | 21.8 | 36.0 | 38 | 31.3 | 26.5 | 36.8 | 49.1 | 46.5 |
| Part No. | Tube
O.D. T in |
P (NPT) |
E Min |
h in | H in | F | G | l | L | L 1 |
|---|---|---|---|---|---|---|---|---|---|---|
| IPME-02-02 | 1/8 | 1/8 | 2.28 | 1/2 | 7/16 | 12.70 | 15.24 | 18.30 | 24.91 | 18.90 |
| IPME-02-04 | 1/8 | 1/4 | 2.28 | 1/2 | 7/16 | 12.70 | 15.24 | 18.30 | 24.91 | 23.36 |
| IPME-03-02 | 3/16 | 1/8 | 3.04 | 1/2 | 1/2 | 13.71 | 16.00 | 18.79 | 25.40 | 18.79 |
| IPME-03-04 | 3/16 | 1/4 | 3.04 | 1/2 | 1/2 | 13.71 | 16.00 | 18.79 | 25.40 | 23.36 |
| IPME-04-02 | 1/4 | 1/8 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.10 | 26.47 | 19.10 |
| IPME-04-04 | 1/4 | 1/4 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.81 | 27.18 | 23.87 |
| IPME-04-06 | 1/4 | 3/8 | 4.82 | 11/16 | 9/16 | 15.24 | 17.78 | 22.35 | 29.71 | 28.40 |
| IPME-04-08 | 1/4 | 1/2 | 4.82 | 13/16 | 9/16 | 15.24 | 17.78 | 24.60 | 31.97 | 35.10 |
| IPME-05-02 | 5/16 | 1/8 | 4.82 | 9/16 | 5/8 | 16.25 | 18.54 | 21.33 | 28.70 | 19.81 |
| IPME-05-04 | 5/16 | 1/4 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 22.40 | 29.77 | 24.50 |
| IPME-05-06 | 5/16 | 3/8 | 6.35 | 11/16 | 5/8 | 16.25 | 18.54 | 23.11 | 30.48 | 28.40 |
| IPME-06-02 | 3/8 | 1/8 | 4.82 | 5/8 | 11/16 | 16.76 | 19.30 | 23.11 | 30.48 | 20.60 |
| IPME-06-04 | 3/8 | 1/4 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 23.11 | 30.48 | 25.40 |
| IPME-06-06 | 3/8 | 3/8 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 23.87 | 31.24 | 28.44 |
| IPME-06-08 | 3/8 | 1/2 | 7.11 | 13/16 | 11/16 | 16.76 | 19.30 | 23.80 | 31.42 | 33.02 |
| IPME-06-12 | 3/8 | 3/4 | 7.11 | 1-1/16 | 11/16 | 16.76 | 19.30 | 29.71 | 37.08 | 36.83 |
| IPME-08-04 | 1/2 | 1/4 | 7.11 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 | 28.30 |
| IPME-08-06 | 1/2 | 3/8 | 9.65 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 | 28.30 |
| IPME-08-08 | 1/2 | 1/2 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 | 33.02 |
| IPME-08-12 | 1/2 | 3/4 | 10.41 | 1-1/16 | 7/8 | 22.86 | 21.84 | 29.71 | 39.87 | 36.83 |
| IPME-10-06 | 5/8 | 3/8 | 9.65 | 15/16 | 1 | 24.38 | 21.84 | 26.90 | 37.06 | 29.40 |
| IPME-10-08 | 5/8 | 1/2 | 11.93 | 15/16 | 1 | 24.38 | 21.84 | 26.90 | 37.06 | 34.00 |
| IPME-10-12 | 5/8 | 3/4 | 12.70 | 1-1/16 | 1 | 24.38 | 21.84 | 29.71 | 39.87 | 36.83 |
| IPME-12-08 | 3/4 | 1/2 | 11.93 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 29.71 | 39.87 | 37.00 |
| IPME-12-12 | 3/4 | 3/4 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 29.71 | 39.87 | 36.83 |
| IPME-14-12 | 7/8 | 3/4 | 15.74 | 1-1/4 | 1-1/4 | 25.90 | 21.84 | 34.54 | 44.70 | 41.65 |
| IPME-16-12 | 1 | 3/4 | 15.74 | 1-27/64 | 1-1/2 | 31.24 | 26.41 | 36.83 | 49.02 | 42.20 |
| IPME-16-16 | 1 | 1 | 22.35 | 1-27/64 | 1-1/2 | 31.24 | 26.41 | 36.83 | 49.02 | 46.70 |
