We offer Bulkhead Female Connectors that are widely used to connect a fractional tube to a male NPT thread. These female connectors are available in stainless steel, carbon steel, brass, money, haste alloy, Inconel, etc. These specialized tube fittings ensure leak proof and are torque free and ensure complete durability.

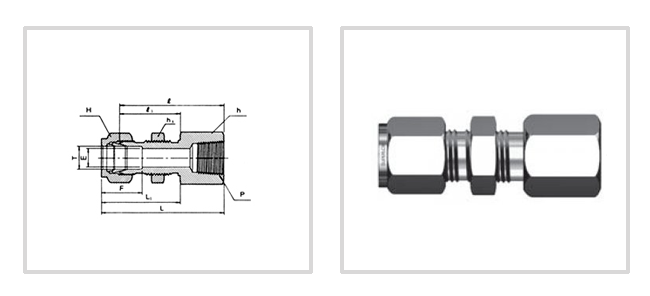

| Part No. | Tube O.D. T mm | P (NPT) |
E mm |
h mm | h1 mm | H mm | F | l | l1 | L | L1 | Panel Hole DrillSize |
Max Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPBFC-06-02 | 6 | 1/8 | 4.8 | 15.8 | 15.8 | 14 | 15.3 | 39.6 | 27.7 | 46.90 | 35 | 11.5 | 10.2 |
| MPBFC-06-04 | 6 | 1/4 | 4.8 | 19.0 | 16.0 | 14 | 15.3 | 44.4 | 26.2 | 51.80 | 33.6 | 11.5 | 10.2 |
| MPBFC-08-04 | 8 | 1/4 | 6.3 | 19.0 | 17.4 | 16 | 16.2 | 46.7 | 28.4 | 53.85 | 35.55 | 13.1 | 11.2 |
| MPBFC-12-08 | 12 | 1/2 | 9.5 | 27.0 | 24.0 | 22 | 22.8 | 55.4 | 31.8 | 66.50 | 41.9 | 19.5 | 12.7 |
| Part No. |
Tube O.D. T in |
P (NPT) |
E Min |
h in | h1 in | H in |
F |
l |
l1 |
L |
L1 |
Panel |
Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IPBFC-02-02 | 1/8 | 1/8 | 2.28 | 9/16 | 1/2 | 7/16 | 12.70 | 38.10 | 24.63 | 44.70 | 31.24 | 8.33 | 12.70 |
| IPBFC-04-02 | 1/4 | 1/8 | 4.82 | 5/8 | 9/16 | 9/16 | 15.24 | 39.62 | 26.16 | 46.99 | 33.52 | 11.50 | 10.16 |
| IPBFC-04-04 | 1/4 | 1/4 | 4.82 | 3/4 | 5/8 | 9/16 | 15.24 | 44.45 | 26.16 | 51.81 | 33.52 | 11.50 | 10.16 |
| IPBFC-06-04 | 3/8 | 1/4 | 7.11 | 3/4 | 3/4 | 11/16 | 16.76 | 47.75 | 29.46 | 55.11 | 36.83 | 14.68 | 11.17 |
| IPBFC-08-06 | 1/2 | 3/8 | 10.41 | 15/16 | 15/16 | 7/8 | 22.86 | 51.56 | 31.75 | 61.72 | 41.91 | 19.44 | 12.70 |
| IPBFC-08-08 | 1/2 | 1/2 | 10.41 | 1-1/16 | 15/16 | 7/8 | 22.86 | 56.38 | 31.75 | 66.54 | 41.91 | 19.44 | 12.70 |
| IPBFC-12-12 | 3/4 | 3/4 | 15.74 | 1-1/4 | 1-3/16 | 1-1/8 | 24.38 | 63.60 | 38.80 | 75.51 | 47.21 | 25.79 | 16.76 |
