Having gained sound technological expertise and vast industry experience, we are offering Female Run Tee from our huge gamut of S.S. Pipe Tees. These are made from the finest raw materials by complying with the international standards. We use cutting-edge technologies to manufacture these in our high-end facilities. These are widely used and acclaimed for striking features. Our gamut consists of Union Tee, Male Branch Tee, Male Run Tee, Female Branch Tee and Female Run Tee. These are offered at economical prices to our valued clients.

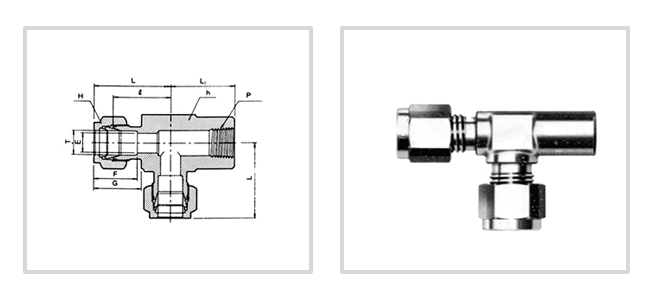

| Part No. | Tube
O.D. T mm |
P (NPT) |
E mm |
h mm | H mm | F | G | l | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|
| MPFRT-06-02 | 6 | 1/8 | 4.8 | 12.70 | 14 | 15.3 | 17.7 | 19.6 | 46.0 | 19.0 |
| MPFRT-06-04 | 6 | 1/4 | 4.8 | 17.46 | 14 | 15.3 | 17.7 | 22.4 | 52.1 | 22.4 |
| MPFRT-06-08 | 6 | 1/2 | 4.8 | 25.40 | 14 | 15.3 | 17.7 | 27.2 | 34.5 | 28.4 |
| MPFRT-08-02 | 8 | 1/8 | 6.4 | 15.87 | 16 | 16.2 | 18.6 | 22.4 | 48.9 | 19.0 |
| MPFRT-08-04 | 8 | 1/4 | 6.4 | 17.46 | 16 | 16.2 | 18.6 | 23.1 | 53.0 | 22.4 |
| MPFRT-08-06 | 8 | 3/8 | 6.4 | 20.63 | 16 | 16.2 | 18.6 | 25.2 | 32.4 | 22.4 |
| MPFRT-08-08 | 8 | 1/2 | 6.4 | 25.40 | 16 | 16.2 | 28.6 | 28.0 | 35.2 | 28.4 |
| MPFRT-12-04 | 12 | 1/4 | 9.5 | 20.63 | 22 | 22.8 | 22.0 | 25.9 | 58.4 | 22.4 |
| MPFRT-12-06 | 12 | 3/8 | 9.5 | 20.63 | 22 | 22.8 | 22.0 | 25.9 | 58.4 | 22.4 |
| MPFRT-12-08 | 12 | 1/2 | 9.5 | 26.98 | 22 | 22.8 | 22.0 | 29.7 | 40.0 | 28.4 |
| MPFRT-16-08 | 16 | 1/2 | 12.7 | 25.40 | 25 | 24.4 | 22.0 | 29.7 | 39.9 | 28.4 |
| Part No. | Tube O.D. T in |
P (NPT) |
E Min |
h in | H in | F | G | l | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|
| IPFRT-02-02 | 1/8 | 1/8 | 2.28 | 1/2 | 7/16 | 12.70 | 15.24 | 18.03 | 24.63 | 19.05 |
| IPFRT-04-02 | 1/4 | 1/8 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.55 | 26.92 | 19.05 |
| IPFRT-04-04 | 1/4 | 1/4 | 4.82 | 11/16 | 9/16 | 15.24 | 17.78 | 22.86 | 29.71 | 22.35 |
| IPFRT-06-04 | 3/8 | 1/4 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 23.87 | 31.24 | 22.35 |
| IPFRT-08-06 | 1/2 | 3/8 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 | 22.35 |
| IPFRT-08-08 | 1/2 | 1/2 | 10.41 | 1 | 7/8 | 22.86 | 21.84 | 29.71 | 39.87 | 28.44 |
| IPFRT-12-12 | 3/4 | 3/4 | 15.74 | 1-1/4 | 1-1/8 | 24.38 | 21.84 | 34.54 | 44.70 | 31.75 |
