Backed by vast experience and immense knowledge of the domain, we are offering Female Adapter from our gamut of S.S. Tube Fittings, Stainless Tube Fittings, and Stainless Steel Pipe Fittings.

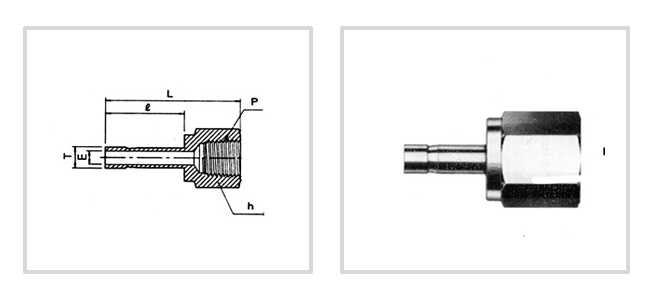

| Part No. | Tube O.D. T mm |
P (NPT) |
E | h mm | l | L |
|---|---|---|---|---|---|---|
| MPFA-03-02 | 3 | 1/8 | 1.8 | 14 | 13.15 | 31.15 |
| MPFA-06-02 | 6 | 1/8 | 4.6 | 14 | 15.75 | 32.5 |
| MPFA-06-04 | 6 | 1/4 | 4.6 | 19 | 15.75 | 37.1 |
| MPFA-08-04 | 8 | 1/4 | 6.3 | 19 | 16.50 | 37.6 |
| MPFA-10-04 | 10 | 1/4 | 7.7 | 19 | 17.50 | 38.1 |
| MPFA-10-06 | 10 | 3/8 | 7.7 | 22 | 17.50 | 40.1 |
| MPFA-10-08 | 10 | 1/2 | 7.7 | 27 | 17.50 | 46.5 |
| MPFA-12-04 | 12 | 1/4 | 9.1 | 19 | 23.50 | 43.7 |
| MPFA-12-06 | 12 | 3/8 | 9.1 | 22 | 23.50 | 46.0 |
| MPFA-12-08 | 12 | 1/2 | 9.1 | 27 | 23.50 | 52.3 |
| MPFA-18-12 | 18 | 3/4 | 13.9 | 32 | 24.90 | 54.8 |
| - | mmHg | inHg | in | ft. | atm | lb/in | l¸/l² | KPa | BAR |
|---|---|---|---|---|---|---|---|---|---|
| mmHg | 1. | .03937 | .5353 | .04461 | .00132 | .01934 | .00136 | .1333 | .0013 |
| inHg | 25.40 | 1. | 13.60 | 1.133 | .03342 | .4912 | .03453 | 3.387 | .0339 |
| in | 1.868 | .07355 | 1. | .08333 | .00246 | .03612 | .00254 | .2490 | .0025 |
| ft. | 22.42 | .8826 | 12. | 1. | .02950 | .4334 | .3048 | 2.988 | .0299 |
| atm | 760 | 29.92 | 406.8 | 33.90 | 1. | 14.70 | 1.033 | 101.3 | 1.013 |
| lb/in | 51.71 | 2.036 | 27.69 | 2.307 | .06805 | 1. | .07031 | 6.895 | .0689 |
| l¸/l² | 735.6 | 28.96 | 397.3 | 32.81 | .9678 | 14.22 | 1. | 98.05 | .981 |
| kPa | 7.50 | .2953 | 4.016 | .3347 | .00987 | .1451 | .0102 | 1. | .01 |
| Bar | 750. | 29.53 | 401.6 | 33.47 | .987 | 14.51 | 1.02 | 100. | 1. |
| Part No. | Tube O.D. T in |
P (NPT) |
E | h in | l | L |
|---|---|---|---|---|---|---|
| IPFA-02-02 | 1/8 | 1/8 | 1.77 | 9/16 | 13.45 | 31.50 |
| IPFA-02-04 | 1/8 | 1/4 | 1.77 | 3/4 | 13.45 | 35.30 |
| IPFA-03-02 | 3/16 | 1/8 | 3.04 | 9/16 | 14.20 | 32.00 |
| IPFA-03-04 | 3/16 | 1/4 | 3.04 | 3/4 | 14.20 | 35.81 |
| IPFA-04-02 | 1/4 | 1/8 | 4.57 | 9/16 | 15.75 | 33.02 |
| IPFA-04-04 | 1/4 | 1/4 | 4.57 | 3/4 | 15.75 | 37.10 |
| IPFA-04-06 | 1/4 | 3/8 | 4.57 | 7/8 | 15.75 | 39.37 |
| IPFA-04-08 | 1/4 | 1/2 | 4.57 | 1-1/16 | 15.75 | 42.50 |
| IPFA-05-02 | 5/16 | 1/8 | 6.35 | 9/16 | 16.80 | 34.29 |
| IPFA-05-04 | 5/16 | 1/4 | 6.35 | 3/4 | 16.80 | 37.59 |
| IPFA-06-02 | 3/8 | 1/8 | 7.11 | 9/16 | 17.50 | 34.29 |
| IPFA-06-04 | 3/8 | 1/4 | 7.11 | 3/4 | 17.50 | 38.10 |
| IPFA-06-06 | 3/8 | 3/8 | 7.11 | 7/8 | 17.50 | 40.38 |
| IPFA-06-08 | 3/8 | 1/2 | 7.11 | 1-1/16 | 17.50 | 46.73 |
| IPFA-08-04 | 1/2 | 1/4 | 9.90 | 3/4 | 23.20 | 43.43 |
| IPFA-08-06 | 1/2 | 3/8 | 9.90 | 7/8 | 23.20 | 45.46 |
| IPFA-08-08 | 1/2 | 1/2 | 9.90 | 1-1/16 | 23.20 | 51.80 |
| IPFA-10-06 | 5/8 | 3/8 | 12.70 | 7/8 | 24.70 | 48.26 |
| IPFA-10-08 | 5/8 | 1/2 | 12.70 | 1-1/16 | 24.70 | 53.84 |
| IPFA-10-12 | 5/8 | 3/4 | 12.70 | 1-1/4 | 24.70 | 55.37 |
| IPFA-12-08 | 3/4 | 1/2 | 14.98 | 1-1/16 | 24.70 | 52.83 |
| IPFA-12-12 | 3/4 | 3/4 | 14.98 | 1-1/4 | 24.70 | 54.86 |
| IPFA-12-16 | 3/4 | 1 | 14.98 | 1-5/8 | 24.70 | 58.42 |
| IPFA-14-12 | 7/8 | 3/4 | 17.27 | 1-1/4 | 26.70 | 57.15 |
| IPFA-16-12 | 1 | 3/4 | 20.06 | 1-1/4 | 31.70 | 60.70 |
| IPFA-16-16 | 1 | 1 | 20.06 | 1-5/8 | 31.70 | 64.26 |
