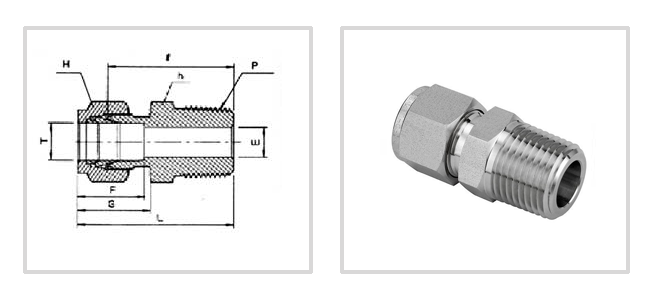

Backed by the vast industry experience, we are offering Male Connector from our wide array of Brass Fittings 45 Degree Inverted Flare.
| Part No. | Tube O.D.T mm | P(NPT) | E mm | h mm | H mm | F | G | l | L |
|---|---|---|---|---|---|---|---|---|---|
| MPMC-02-02 | 2 | 1/8 | 1.7 | 12 | 12 | 12.9 | 15.3 | 23.9 | 30.5 |
| MPMC-03-02 | 3 | 1/8 | 2.4 | 12 | 12 | 12.9 | 15.3 | 23.1 | 29.7 |
| MPMC-03-04 | 3 | 1/4 | 2.4 | 14 | 12 | 12.9 | 15.3 | 29.0 | 35.6 |
| MPMC-04-02 | 4 | 1/8 | 2.4 | 12 | 12 | 13.7 | 16.1 | 24.6 | 31.2 |
| MPMC-04-04 | 4 | 1/4 | 2.4 | 14 | 12 | 13.7 | 16.1 | 29.7 | 36.3 |
| MPMC-06-02 | 6 | 1/8 | 4.8 | 14 | 14 | 15.3 | 17.7 | 25.4 | 32.8 |
| MPMC-06-04 | 6 | 1/4 | 4.8 | 14 | 14 | 15.3 | 17.7 | 30.2 | 37.6 |
| MPMC-06-06 | 6 | 3/8 | 4.8 | 17 | 14 | 15.3 | 17.7 | 31.0 | 38.4 |
| MPMC-06-08 | 6 | 1/2 | 4.8 | 22 | 14 | 15.3 | 17.7 | 36.6 | 44.0 |
| MPMC-08-02 | 8 | 1/8 | 4.8 | 15 | 16 | 16.2 | 18.6 | 26.7 | 34.2 |
| MPMC-04-04 | 8 | 1/4 | 6.4 | 15 | 16 | 16.2 | 18.6 | 31.2 | 38.7 |
| MPMC-08-06 | 8 | 3/8 | 6.4 | 17 | 16 | 16.2 | 18.6 | 31.8 | 39.2 |
| MPMC-08-08 | 8 | 1/2 | 6.4 | 22 | 16 | 16.2 | 18.6 | 37.3 | 44.8 |
| MPMC-10-02 | 10 | 1/8 | 4.8 | 18 | 19 | 17.2 | 19.5 | 28.7 | 36.3 |
| MPMC-10-04 | 10 | 1/4 | 7.1 | 18 | 19 | 17.2 | 19.5 | 33.3 | 40.9 |
| MPMC-10-06 | 10 | 3/8 | 7.9 | 18 | 19 | 17.2 | 19.5 | 33.3 | 40.9 |
| MPMC-10-08 | 10 | 1/2 | 7.9 | 22 | 19 | 17.2 | 19.5 | 38.1 | 45.7 |
| MPMC-12-04 | 12 | 1/4 | 7.1 | 22 | 22 | 22.8 | 22.0 | 33.3 | 43.4 |
| MPMC-12-06 | 12 | 3/8 | 9.5 | 22 | 22 | 22.8 | 22.0 | 33.3 | 43.4 |
| MPMC-12-08 | 12 | 1/2 | 9.5 | 22 | 22 | 22.8 | 2.0 | 38.1 | 48.2 |
| MPMC-12-12 | 12 | 3/4 | 9.5 | 27 | 22 | 22.8 | 22.0 | 38.9 | 49.0 |
| MPMC-15-08 | 15 | 1/2 | 11.9 | 24 | 25 | 24.4 | 22.0 | 38.9 | 49.0 |
| MPMC-16-04 | 16 | 1/4 | 7.1 | 24 | 25 | 24.4 | 22.0 | 34.0 | 44.1 |
| MPMC-16-06 | 16 | 3/8 | 9.5 | 24 | 25 | 24.4 | 22.0 | 34.0 | 44.1 |
| MPMC-16-08 | 16 | 1/2 | 11.9 | 24 | 25 | 24.4 | 22.0 | 38.9 | 49.0 |
| MPMC-16-12 | 16 | 3/4 | 12.7 | 27 | 25 | 24.4 | 22.0 | 38.9 | 49.0 |
| MPMC-18-08 | 18 | 1/2 | 11.9 | 27 | 30 | 24.4 | 22.0 | 40.4 | 50.5 |
| MPMC-18-12 | 18 | 3/4 | 15.1 | 27 | 30 | 24.4 | 22.0 | 40.4 | 50.5 |
| MPMC-20-08 | 20 | 1/2 | 11.9 | 30 | 32 | 26.0 | 22.0 | 42.2 | 52.3 |
| MPMC-20-12 | 20 | 3/4 | 15.9 | 30 | 32 | 26.0 | 22.0 | 42.2 | 52.3 |
| MPMC-22-12 | 22 | 3/4 | 15.9 | 30 | 32 | 26.0 | 22.0 | 42.2 | 52.3 |
| MPMC-22-16 | 22 | 1 | 18.3 | 35 | 32 | 26.0 | 22.0 | 47.8 | 57.9 |
| MPMC-25-12 | 25 | 3/4 | 15.9 | 35 | 38 | 31.3 | 26.5 | 45.2 | 57.5 |
| MPMC-25-16 | 25 | 1 | 21.8 | 35 | 38 | 31.3 | 26.5 | 50.0 | 62.3 |
| Part No. | Tube O.D.T mm | P(NPT) | Emm | h in | H in | F | G | l | L |
|---|---|---|---|---|---|---|---|---|---|
| IPMC 01-01 | 1/16 | 1/16 | 1.27 | 5/16 | 5/16 | 8.63 | 10.92 | 20.00 | 23.83 |
| IPMC 01-02 | 1/16 | 1/8 | 1.27 | 7/16 | 7/16 | 8.63 | 10.92 | 22.35 | 26.33 |
| IPMC-02-02 | 1/8 | 1/8 | 2.28 | 7/16 | 7/16 | 12.70 | 15.24 | 23.87 | 30.48 |
| IPMC-02-04 | 1/8 | 1/4 | 2.28 | 9/16 | 7/16 | 12.70 | 15.24 | 28.95 | 35.56 |
| IPMC-02-06 | 1/8 | 3/8 | 2.28 | 11/16 | 7/16 | 12.70 | 15.24 | 29.21 | 35.81 |
| IPMC-02-08 | 1/8 | 1/2 | 2.28 | 7/8 | 7/16 | 12.70 | 15.24 | 35.56 | 42.16 |
| IPMC-03-02 | 3/16 | 1/8 | 3.04 | 7/16 | 1/2 | 13.71 | 16.00 | 24.63 | 31.24 |
| IPMC-03-04 | 3/16 | 1/4 | 3.04 | 9/16 | 1/2 | 13.71 | 16.00 | 29.71 | 36.32 |
| IPMC-04-02 | 1/4 | 1/8 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 25.40 | 32.76 |
| IPMC-04-04 | 1/4 | 1/4 | 4.82 | 9/16 | 9/16 | 15.24 | 17.78 | 30.48 | 37.84 |
| IPMC-04-06 | 1/4 | 3/8 | 4.82 | 11/16 | 9/16 | 15.24 | 17.78 | 30.98 | 38.35 |
| IPMC-04-08 | 1/4 | 1/2 | 4.82 | 7/8 | 9/16 | 15.24 | 17.78 | 37.33 | 44.70 |
| IPMC-04-12 | 1/4 | 3/4 | 4.82 | 1-1/16 | 9/16 | 15.24 | 17.78 | 38.86 | 46.22 |
| IPMC-05-02 | 5/16 | 1/8 | 4.82 | 9/16 | 5/8 | 16.25 | 18.54 | 26.67 | 34.03 |
| IPMC-05-04 | 5/16 | 1/4 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 31.24 | 38.60 |
| IPMC-05-06 | 5/16 | 3/8 | 6.35 | 11/16 | 5/8 | 16.25 | 18.54 | 31.75 | 39.11 |
| IPMC-06-02 | 3/8 | 1/8 | 4.82 | 5/8 | 11/16 | 16.76 | 19.30 | 29.94 | 35.30 |
| IPMC-06-04 | 3/8 | 1/4 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 32.51 | 39.87 |
| IPMC-06-06 | 3/8 | 3/8 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 32.51 | 39.87 |
| IPMC-06-08 | 3/8 | 1/2 | 7.11 | 7/8 | 11/16 | 16.76 | 19.30 | 38.86 | 46.22 |
| IPMC-06-12 | 3/8 | 3/4 | 7.11 | 1-1/16 | 11/16 | 16.76 | 19.30 | 40.38 | 47.75 |
| IPMC-08-02 | 1/2 | 1/8 | 4.82 | 13/16 | 7/8 | 22.86 | 21.84 | 28.70 | 38.86 |
| IPMC-08-04 | 1/2 | 1/4 | 7.11 | 13/16 | 7/8 | 22.86 | 21.84 | 33.27 | 43.43 |
| IPMC-08-06 | 1/2 | 3/8 | 9.65 | 13/16 | 7/8 | 22.86 | 21.84 | 33.27 | 43.43 |
| IPMC-08-08 | 1/2 | 1/2 | 10.41 | 7/8 | 7/8 | 22.86 | 21.84 | 38.86 | 49.02 |
| IPMC-08-12 | 1/2 | 3/4 | 10.41 | 1-1/16 | 7/8 | 22.86 | 21.84 | 40.38 | 50.54 |
| IPMC-08-16 | 1/2 | 1 | 10.41 | 1-3/8 | 7/8 | 22.86 | 21.84 | 46.99 | 57.15 |
| IPMC-10-06 | 5/8 | 3/8 | 9.65 | 15/16 | 1 | 24.38 | 21.84 | 34.03 | 44.19 |
| IPMC-10-08 | 5/8 | 1/2 | 11.93 | 15/16 | 1 | 24.38 | 21.84 | 38.86 | 49.02 |
| IPMC-10-12 | 5/8 | 3/4 | 12.70 | 1-1/16 | 1 | 24.38 | 21.84 | 40.38 | 50.54 |
| IPMC-12-08 | 3/4 | 1/2 | 11.93 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 40.38 | 50.54 |
| IPMC-12-12 | 3/4 | 3/4 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 40.38 | 50.54 |
| IPMC-12-16 | 3/4 | 1 | 15.74 | 1-3/8 | 1-1/8 | 24.38 | 21.84 | 46.99 | 57.15 |
| IPMC-14-12 | 7/8 | 3/4 | 15.74 | 1-3/16 | 1-1/4 | 25.90 | 21.84 | 40.38 | 50.54 |
| IPMC-14-16 | 7/8 | 1 | 18.28 | 1-3/8 | 1-1/4 | 25.90 | 21.84 | 46.99 | 57.15 |
| IPMC-16-08 | 1 | 1/2 | 11.93 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 45.21 | 57.40 |
| IPMC-16-12 | 1 | 3/4 | 15.74 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 45.21 | 57.40 |
| IPMC-16-16 | 1 | 1 | 22.35 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 50.03 | 62.23 |
