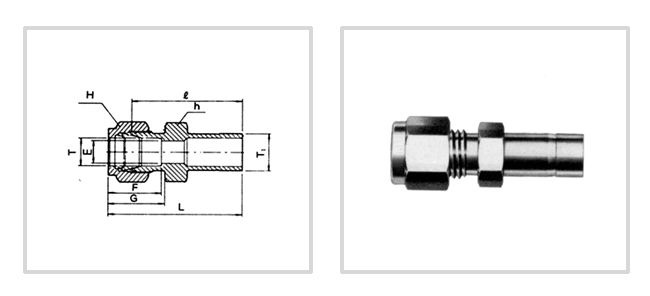

Part No. | Tube O.D. T1mm | T1mm | E mm |
h mm | H mm | F | G | l | L |
---|---|---|---|---|---|---|---|---|---|
- | T mm | T1mm | |||||||
MPR-03-04 | 3 | 4 | 2.4 | 12 | 12 | 12.9 | 15.3 | 28.4 | 35.0 |
MPR-03-06 | 3 | 6 | 2.4 | 12 | 12 | 12.9 | 15.3 | 29.5 | 36.1 |
MPR-03-10 | 3 | 10 | 2.4 | 12 | 12 | 12.9 | 15.3 | 31.8 | 38.4 |
MPR-04-06 | 4 | 6 | 2.4 | 12 | 12 | 13.7 | 16.1 | 30.5 | 37.1 |
MPR-06-03 | 6 | 3 | 1.8 | 14 | 14 | 15.3 | 17.7 | 29.5 | 36.9 |
MPR-06-08 | 6 | 8 | 4.8 | 14 | 14 | 15.3 | 17.7 | 32.5 | 39.9 |
MPR-06-10 | 6 | 10 | 4.8 | 14 | 14 | 15.3 | 17.7 | 33.3 | 40.7 |
MPR-06-12 | 6 | 12 | 4.8 | 14 | 14 | 15.3 | 17.7 | 28.9 | 46.3 |
MPR-08-06 | 8 | 6 | 4.6 | 15 | 16 | 16.2 | 18.6 | 32.8 | 40.3 |
MPR-08-10 | 8 | 10 | 6.4 | 15 | 16 | 16.2 | 18.6 | 34.5 | 42.0 |
MPR-08-12 | 8 | 12 | 6.4 | 15 | 16 | 16.2 | 18.6 | 40.1 | 47.6 |
MPR-10-06 | 10 | 6 | 4.6 | 18 | 19 | 17.2 | 19.5 | 34.8 | 42.4 |
MPR-10-12 | 10 | 12 | 7.9 | 18 | 19 | 17.2 | 19.5 | 42.2 | 49.8 |
MPR-10-15 | 10 | 15 | 7.9 | 18 | 19 | 17.2 | 19.5 | 43.7 | 51.3 |
MPR-10-18 | 10 | 18 | 7.9 | 19 | 19 | 17.2 | 19.5 | 43.7 | 51.3 |
MPR-12-06 | 12 | 6 | 4.6 | 22 | 22 | 22.8 | 22.0 | 34.8 | 44.9 |
MPR-12-10 | 12 | 10 | 7.7 | 22 | 22 | 22.8 | 22.0 | 36.6 | 46.7 |
MPR-12-16 | 12 | 16 | 9.5 | 22 | 22 | 22.8 | 22.0 | 43.7 | 53.8 |
MPR-12-18 | 12 | 18 | 9.5 | 22 | 22 | 22.8 | 22.0 | 43.7 | 53.8 |
MPR-12-20 | 12 | 20 | 9.5 | 22 | 22 | 22.8 | 22.0 | 46.0 | 56.1 |
MPR-12-22 | 12 | 22 | 9.5 | 24 | 22 | 22.8 | 22.0 | 46.0 | 56.1 |
MPR-12-25 | 12 | 25 | 9.5 | 27 | 22 | 22.8 | 22.0 | 52.3 | 62.4 |
MPR-16-12 | 16 | 12 | 9.1 | 24 | 25 | 24.4 | 22.0 | 42.9 | 53.0 |
MPR-18-12 | 18 | 12 | 9.1 | 27 | 30 | 24.4 | 22.0 | 44.5 | 54.6 |
MPR-18-16 | 18 | 16 | 12.7 | 27 | 30 | 24.4 | 22.0 | 46.0 | 56.1 |
MPR-18-20 | 18 | 20 | 15.1 | 27 | 30 | 24.4 | 22.0 | 47.5 | 57.6 |
MPR-18-22 | 18 | 22 | 15.1 | 27 | 30 | 24.4 | 22.0 | 47.5 | 57.6 |
MPR-18-25 | 18 | 25 | 15.1 | 27 | 30 | 24.4 | 22.0 | 52.3 | 62.4 |
MPR-20-16 | 20 | 16 | 12.7 | 30 | 32 | 24.4 | 22.0 | 47.8 | 57.9 |
MPR-20-18 | 20 | 18 | 13.9 | 30 | 32 | 26.0 | 22.0 | 47.8 | 57.9 |
MPR-20-22 | 20 | 22 | 15.8 | 30 | 32 | 26.0 | 22.0 | 49.3 | 59.4 |
MPR-20-25 | 20 | 25 | 15.8 | 30 | 32 | 26.0 | 22.0 | 54.1 | 64.2 |
MPR-22-18 | 22 | 18 | 13.9 | 30 | 32 | 26.0 | 22.0 | 47.8 | 57.9 |
MPR-22-20 | 22 | 20 | 15.1 | 30 | 32 | 26.0 | 22.0 | 49.3 | 59.4 |
MPR-22-25 | 22 | 25 | 18.3 | 30 | 32 | 26.0 | 22.0 | 54.1 | 64.2 |
MPR-25-18 | 25 | 18 | 13.9 | 35 | 38 | 31.3 | 26.5 | 50.8 | 63.1 |
25 | 20 | 15.1 | 35 | 38 | 31.3 | 26.5 | 52.3 | 64.6 |
Part No. | Tube O.D. | Tube T1 in | E Min |
h in | H in | F | G | l | L |
---|---|---|---|---|---|---|---|---|---|
- | T in | T1 in | |||||||
IPR-02-01 | 1/8 | 1/16 | 0.76 | 7/16 | 7/16 | 12.70 | 15.24 | 22.35 | 28.95 |
IPR-02-02 | 1/8 | 1/8 | 2.03 | 7/16 | 7/16 | 12.70 | 15.24 | 26.92 | 33.52 |
IPR-02-03 | 1/8 | 3/16 | 2.28 | 7/16 | 7/16 | 12.70 | 15.24 | 27.68 | 34.29 |
IPR-02-04 | 1/8 | 1/4 | 2.28 | 7/16 | 7/16 | 12.70 | 15.24 | 29.46 | 36.06 |
IPR-02-06 | 1/8 | 3/8 | 2.28 | 7/16 | 7/16 | 12.70 | 15.24 | 30.98 | 37.59 |
IPR-02-08 | 1/8 | 1/2 | 2.28 | 9/16 | 7/16 | 12.70 | 15.24 | 37.59 | 44.19 |
IPR-03-02 | 3/16 | 1/8 | 2.03 | 7/16 | 1/2 | 13.71 | 16.00 | 28.90 | 34.79 |
IPR-03-04 | 3/16 | 1/4 | 3.04 | 7/16 | 1/2 | 13.71 | 16.00 | 30.48 | 37.08 |
IPR-04-02 | 1/4 | 1/8 | 2.03 | 1/2 | 9/16 | 15.24 | 17.78 | 29.46 | 36.83 |
IPR-04-03 | 1/4 | 3/16 | 3.04 | 1/2 | 9/16 | 15.24 | 17.78 | 30.22 | 37.59 |
IPR-04-04 | 1/4 | 1/4 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 31.75 | 39.11 |
IPR-04-05 | 1/4 | 5/16 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 32.51 | 39.87 |
IPR-04-06 | 1/4 | 3/8 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 33.27 | 40.64 |
IPR-04-08 | 1/4 | 1/2 | 4.82 | 9/16 | 9/16 | 15.24 | 17.78 | 38.86 | 46.22 |
IPR-04-10 | 1/4 | 5/8 | 4.82 | 11/16 | 9/16 | 15.24 | 17.78 | 40.64 | 48.00 |
IPR-04-12 | 1/4 | 3/4 | 4.82 | 13/16 | 9/16 | 15.24 | 17.78 | 40.38 | 47.75 |
IPR-05-06 | 5/16 | 3/8 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 34.54 | 41.91 |
IPR-05-08 | 5/16 | 1/2 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 40.13 | 47.49 |
IPR-06-04 | 3/8 | 1/4 | 4.82 | 5/8 | 11/16 | 16.76 | 19.30 | 34.03 | 41.40 |
IPR-06-06 | 3/8 | 3/8 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 35.81 | 43.18 |
IPR-06-08 | 3/8 | 1/2 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 41.14 | 48.51 |
IPR-06-10 | 3/8 | 5/8 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 42.92 | 50.29 |
IPR-06-12 | 3/8 | 3/4 | 7.11 | 13/16 | 11/16 | 16.76 | 19.30 | 42.92 | 50.29 |
IPR-08-04 | 1/2 | 1/4 | 4.82 | 13/16 | 7/8 | 22.86 | 21.84 | 34.79 | 44.95 |
IPR-08-06 | 1/2 | 3/8 | 7.11 | 13/16 | 7/8 | 22.86 | 21.84 | 36.57 | 46.73 |
IPR-08-08 | 1/2 | 1/2 | 9.90 | 13/16 | 7/8 | 22.86 | 21.84 | 42.16 | 52.32 |
IPR-08-10 | 1/2 | 5/8 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 43.68 | 53.84 |
IPR-08-12 | 1/2 | 3/4 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 43.68 | 53.84 |
IPR-08-16 | 1/2 | 1 | 10.41 | 1-1/16 | 7/8 | 22.86 | 21.84 | 50.03 | 60.19 |
IPR-10-12 | 5/8 | 3/4 | 12.70 | 15/16 | 1 | 24.38 | 21.84 | 44.45 | 54.61 |
IPR-10-14 | 5/8 | 7/8 | 12.70 | 15/16 | 1 | 24.38 | 21.84 | 45.97 | 56.13 |
IPR-10-16 | 5/8 | 1 | 12.70 | 1-1/16 | 1 | 24.38 | 21.84 | 50.80 | 60.96 |
IPR-12-08 | 3/4 | 1/2 | 9.90 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 44.45 | 54.61 |
IPR-12-16 | 3/4 | 1 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 52.32 | 62.48 |
