Empowered by our levels of exquisite professionals, we are involved in offering a wide spectrum of Male Pipe Weld Connector. These products are manufactured using latest techniques and optimum quality raw material in order to maintain their adherence to universally accepted standards. Besides this, the offer qualitative products are tested by our quality controllers on various parameters in order to ensure their excellent finish and corrosion resistance.

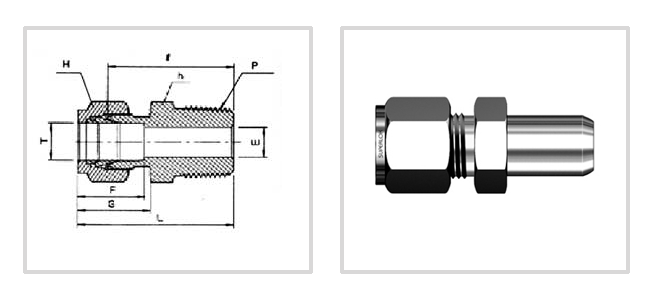

| Part No. | Tube O.D. T mm |
Pipe Weld Size P mm |
E mm |
h mm | H mm | F | G | l | l | L |
|---|---|---|---|---|---|---|---|---|---|---|
| MPMWC-03-02 | 3 | 1/8 | 2.4 | 12 | 12 | 12.9 | 15.3 | 23.1 | 9.7 | 29.7 |
| MPMWC-04-02 | 4 | 1/8 | 2.4 | 12 | 12 | 13.7 | 16.1 | 24.1 | 9.7 | 30.7 |
| MPMWC-06-02 | 6 | 1/8 | 4.8 | 14 | 14 | 15.3 | 17.7 | 25.4 | 9.7 | 32.8 |
| MPMWC-06-04 | 6 | 1/4 | 4.8 | 14 | 14 | 15.3 | 17.7 | 30.2 | 14.2 | 37.6 |
| MPMWC-08-02 | 8 | 1/8 | 5.1 | 15 | 16 | 16.2 | 18.6 | 26.7 | 9.7 | 34.2 |
| MPMWC-08-04 | 8 | 1/4 | 6.4 | 15 | 16 | 16.2 | 18.6 | 31.2 | 14.2 | 38.7 |
| MPMWC-08-08 | 8 | 1/2 | 6.4 | 22 | 16 | 16.2 | 18.6 | 37.3 | 19.0 | 44.8 |
| MPMWC-10-04 | 10 | 1/4 | 7.1 | 18 | 19 | 17.2 | 19.5 | 33.3 | 14.2 | 40.9 |
| MPMWC-10-06 | 10 | 3/8 | 7.9 | 18 | 19 | 17.2 | 19.5 | 32.5 | 14.2 | 40.1 |
| MPMWC-10-08 | 10 | 1/2 | 7.9 | 22 | 19 | 17.2 | 19.5 | 38.1 | 19.0 | 45.7 |
| MPMWC-12-04 | 12 | 1/4 | 7.1 | 22 | 22 | 22.8 | 22.0 | 33.3 | 14.2 | 43.4 |
| MPMWC-12-06 | 12 | 3/8 | 9.5 | 22 | 22 | 22.8 | 22.0 | 33.3 | 14.2 | 43.4 |
| MPMWC-12-08 | 12 | 1/2 | 9.5 | 24 | 22 | 22.8 | 22.0 | 38.1 | 19.0 | 48.2 |
| MPMWC-15-08 | 15 | 1/2 | 11.9 | 24 | 25 | 24.4 | 22.0 | 38.9 | 19.0 | 49.0 |
| MPMWC-16-08 | 16 | 1/2 | 12.7 | 24 | 25 | 24.4 | 22.0 | 38.9 | 19.0 | 49.0 |
| MPMWC-18-08 | 18 | 1/2 | 13.5 | 27 | 30 | 24.4 | 22.0 | 40.4 | 19.0 | 50.05 |
| Part No. | Tube O.D in |
Pipe Weld Size P Nom |
Pipe Weld Size O.D Min |
E Min |
h | H | F | G | l | l | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IPMWC-02-02 | 1/8 | 1/8 | 10.30 | 2.28 | 7/16 | 7/16 | 12.70 | 15.24 | 23.87 | 9.65 | 31.24 |
| IPMWC-03-02 | 3/16 | 1/8 | 10.30 | 3.04 | 7/16 | 1/2 | 13.71 | 16.0 | 24.63 | 9.65 | 31.24 |
| IPMWC-04-02 | 1/4 | 1/8 | 10.30 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 25.40 | 9.65 | 32.76 |
| IPMWC-04-04 | 1/4 | 1/4 | 13.70 | 4.82 | 9/16 | 9/16 | 15.24 | 17.78 | 30.48 | 14.22 | 37.84 |
| IPMWC-05-02 | 5/16 | 1/8 | 10.30 | 5.08 | 9/16 | 5/8 | 16.25 | 18.54 | 26.67 | 9.65 | 37.03 |
| IPMWC-05-04 | 5/16 | 1/4 | 13.70 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 31.24 | 14.22 | 38.60 |
| IPMWC-06-04 | 3/8 | 1/4 | 13.70 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 32.51 | 14.22 | 39.87 |
| IPMWC-06-06 | 3/8 | 3/8 | 17.10 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 32.51 | 11.05 | 39.87 |
| IPMWC-06-08 | 3/8 | 1/2 | 21.30 | 7.11 | 7/8 | 11/16 | 16.76 | 19.30 | 38.86 | 14.22 | 43.23 |
| IPMWC-08-06 | 1/2 | 3/8 | 17.10 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 33.27 | 19.05 | 43.43 |
| IPMWC-08-08 | 1/2 | 1/2 | 21.30 | 10.41 | 7/8 | 7/8 | 22.86 | 21.84 | 38.86 | 14.22 | 49.02 |
| IPMWC-08-12 | 1/2 | 3/4 | 26.67 | 10.41 | 1-1/16 | 7/8 | 22.86 | 21.84 | 40.38 | 19.05 | 50.54 |
| IPMWC-10-08 | 5/8 | 1/2 | 21.30 | 12.70 | 15/16 | 1 | 24.38 | 21.84 | 38.66 | 19.05 | 49.02 |
| IPMWC-12-12 | 3/4 | 3/4 | 26.67 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 40.38 | 19.05 | 50.54 |
| IPMWC-16-16 | 1 | 1 | 33.40 | 22.35 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 50.03 | 23.87 | 62.23 |
