Pioneer Industries is a manufactur firm of Tube fittings and valves.

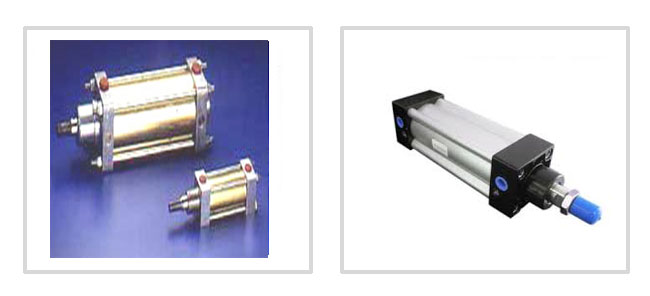

PNEUMATIC CYLINDER

Supported by a skilled group of specialists, we are affianced in introducing a broad gathering of Double Acting Cylinders to the regarded customer base. These items are made-up utilizing finest grade crude material procured from a solid and reliable trader of the business sector. The offered mixture is tried on a scope of parameters by talented group of experts before its last discharge to regarded customers. Other than this, offered items are open with us at sensible costs in the business sector.


DOUBLE ACTING CYLINDER DIMENSIONS
Materials of Construction End caps - Aluminium diecast / Cast Ion Tie rod - Tensile Steel Zinc Plated Piston - Aluminium machines Cylinder Tube - Upto dia 4"(100mm) in brass, dia 5"(125 mm) & above upto dia 12 M.S. seam less honed & hard Chrome plated. Piston Rod - High Tensile Steel Hard Crome Plated Seals - High Nitrile 3307	Features Heavy duty & Robust constructions. Single & double acting models are available in Ten bore sizes from 25mm to 200mm. Adjustable cushioning for reducing impact of stroke at both cylinder ends is standard for all models. (Bore more than 1") Selection of attachments for six mountingstyles. Super finished and hard-chrome plated high tensile steel piston rods.
Pressure Temperature Operating pressure upto 10kg f/cm2 for air upto 25kg f/cm2 for oil Operating Temperature Max. 80o c.	Mountings - Suffix Rear Flange - RF : Front Trunion - FT Rear Trunion - RT : Centre Trunion - CT Clevis Mounting - CM : Front Flange - FF Foot Mounting - FT : Neck Mounting -NM For piston Rod Fork Attachment Suffix - RK.
Service Compressed Air Model - SA25, 38, 50, 57, 63, 75, 100 DA25 TO DA300 Also available in 1 Piston Fork 2 Front Trunnion 3 Rear Trunnion 4 Centre Trunnion 5 Neck Mounting

PNEUMATIC CYLINDER

Download brochure
