We have gained sound technological expertise and vast industry experience and are offering Female Branch Tee from our wide spectrum of S.S. Pipe Tees. These are made from the finest raw materials by complying with the international standards. We use cutting-edge technologies to manufacture these in our modern facilities. These are extensively used and appreciated for unmatched features. Our spectrum consists of Union Tee, Male Branch Tee, Male Run Tee, Female Branch Tee and Female Run Tee, that are offered at reasonable prices to the clients.

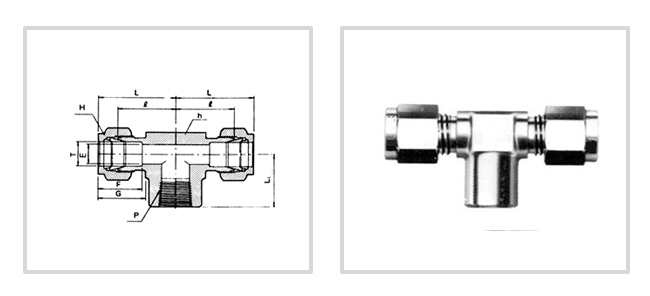

| Part No. | Tube
O.D. T mm |
P (NPT) |
E mm |
h mm | H mm | F | G | l | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|
| MPFBT-06-02 | 6 | 1/8 | 4.8 | 12.70 | 14 | 15.3 | 17.7 | 19.6 | 27.0 | 19.0 |
| MPFBT-06-04 | 6 | 1/4 | 4.8 | 17.46 | 14 | 15.3 | 17.7 | 22.4 | 29.8 | 22.4 |
| MPFBT-06-06 | 6 | 3/8 | 4.8 | 20.63 | 14 | 15.3 | 17.7 | 22.4 | 31.7 | 22.4 |
| MPFBT-06-08 | 6 | 1/2 | 4.8 | 25.40 | 14 | 15.3 | 17.7 | 27.2 | 34.7 | 28.4 |
| MPFBT-08-02 | 8 | 1/8 | 6.4 | 15.87 | 16 | 16.2 | 18.6 | 23.1 | 29.9 | 19.0 |
| MPFBT-08-04 | 8 | 1/4 | 6.4 | 17.46 | 16 | 16.2 | 18.6 | 23.1 | 30.6 | 22.4 |
| MPFBT-08-06 | 8 | 3/8 | 6.4 | 20.63 | 16 | 16.2 | 18.6 | 25.2 | 32.4 | 22.4 |
| MPFBT-08-08 | 8 | 1/2 | 6.4 | 25.40 | 16 | 16.2 | 18.6 | 28.0 | 35.2 | 28.4 |
| MPFBT-10-04 | 10 | 1/4 | 7.9 | 20.63 | 19 | 17.2 | 19.5 | 25.9 | 33.5 | 22.4 |
| MPFBT-10-06 | 10 | 3./8 | 7.9 | 20.63 | 19 | 17.2 | 19.5 | 25.9 | 33.3 | 22.4 |
| MPFBT-10-08 | 10 | 1/2 | 9.5 | 25.40 | 19 | 17.2 | 19.5 | 26.2 | 33.6 | 22.4 |
| MPFBT-12-04 | 12 | 1/4 | 9.5 | 20.63 | 22 | 22.8 | 22.0 | 25.9 | 36.0 | 22.4 |
| MPFBT-12-06 | 12 | 3/8 | 9.5 | 20.63 | 22 | 22.8 | 22.0 | 25.9 | 36.0 | 22.4 |
| MPFBT-12-08 | 12 | 1/2 | 9.5 | 25.40 | 22 | 22.8 | 22.0 | 29.7 | 40.0 | 28.4 |
| MPFBT-16-08 | 16 | 1/2 | 12.7 | 25.4 | 25 | 24.4 | 22.0 | 28.7 | 38.8 | 28.7 |
| Part No. | Tube O.D. T in |
P (NPT) |
E Min |
h in | H in | F | G | l | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|
| IPFBT-02-02 | 1/8 | 1/8 | 2.28 | 1/2 | 7/16 | 12.70 | 15.24 | 18.03 | 24.38 | 19.05 |
| IPFBT-04-02 | 1/4 | 1/8 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.55 | 26.92 | 19.05 |
| IPFBT-04-04 | 1/4 | 1/4 | 4.82 | 11/16 | 9/16 | 15.24 | 17.78 | 22.35 | 29.71 | 22.35 |
| IPFBT-06-04 | 3/8 | 1/4 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 23.87 | 31.24 | 22.35 |
| IPFBT-08-04 | 1/2 | 1/4 | 10.41 | 13/16 | 7/8 | 22.86 | 21.34 | 25.90 | 26.06 | 22.35 |
| IPFBT-08-06 | 1/2 | 3/8 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 | 22.35 |
| IPFBT-08-08 | 1/2 | 1/2 | 10.41 | 1 | 1 | 22.86 | 21.84 | 28.70 | 38.86 | 28.44 |
| IPFBT-10-08 | 5/8 | 1/2 | 12.70 | 1 | 1-1/8 | 24.38 | 21.84 | 28.70 | 38.86 | 28.44 |
| IPFBT-12-12 | 3/4 | 3/4 | 15.74 | 1-1/4 | 1-1/8 | 24.38 | 21.84 | 34.54 | 44.70 | 31.75 |
| IPFBT-16-12 | 1 | 3/4 | 22.35 | 1-27/64 | 1-1/2 | 31.24 | 26.41 | 36.83 | 49.02 | 31.75 |
| IPFBT-16-16 | 1 | 1 | 22.35 | 1-11/16 | 1-1/2 | 31.24 | 26.41 | 44.20 | 53.59 | 38.10 |
